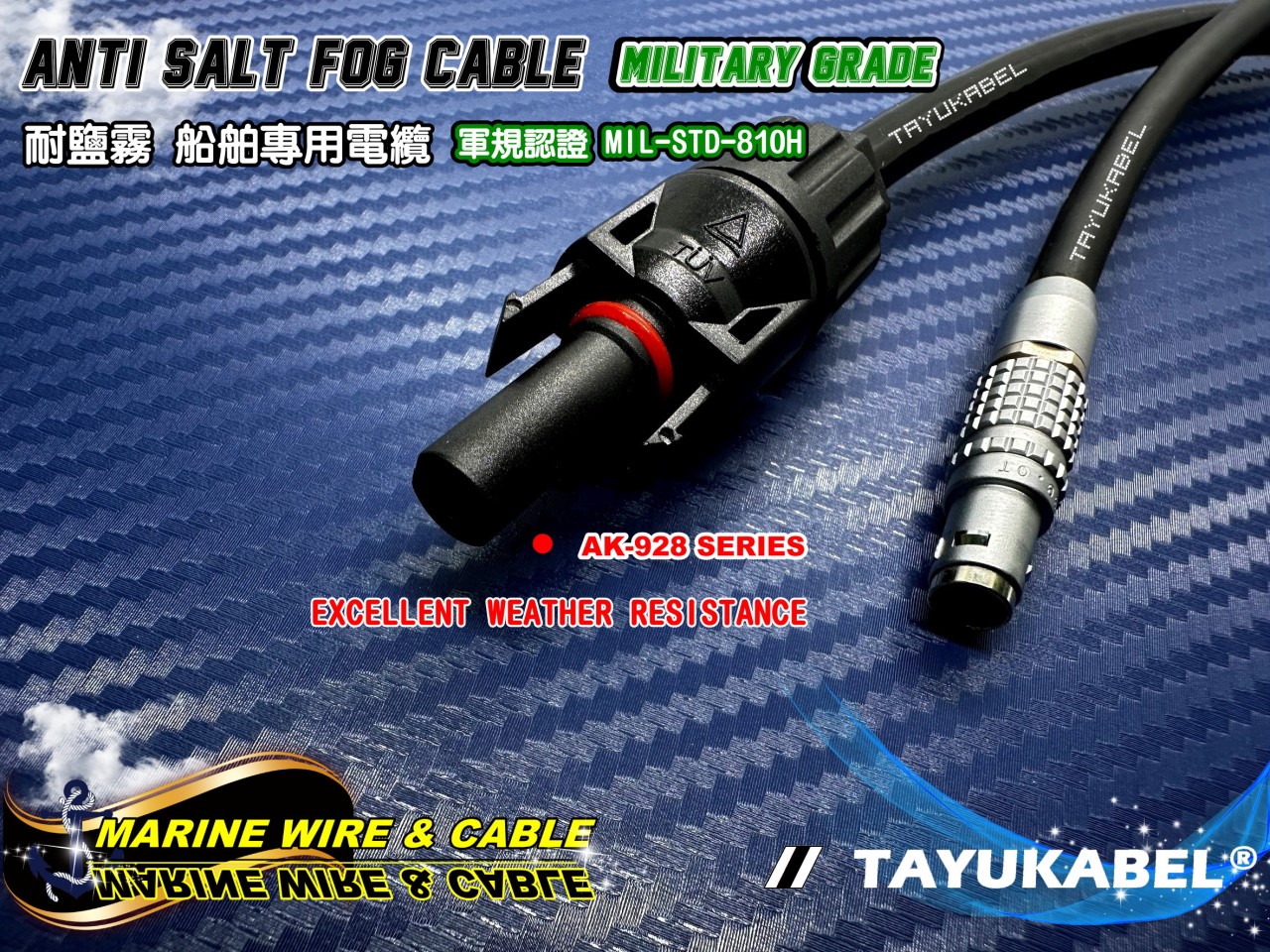

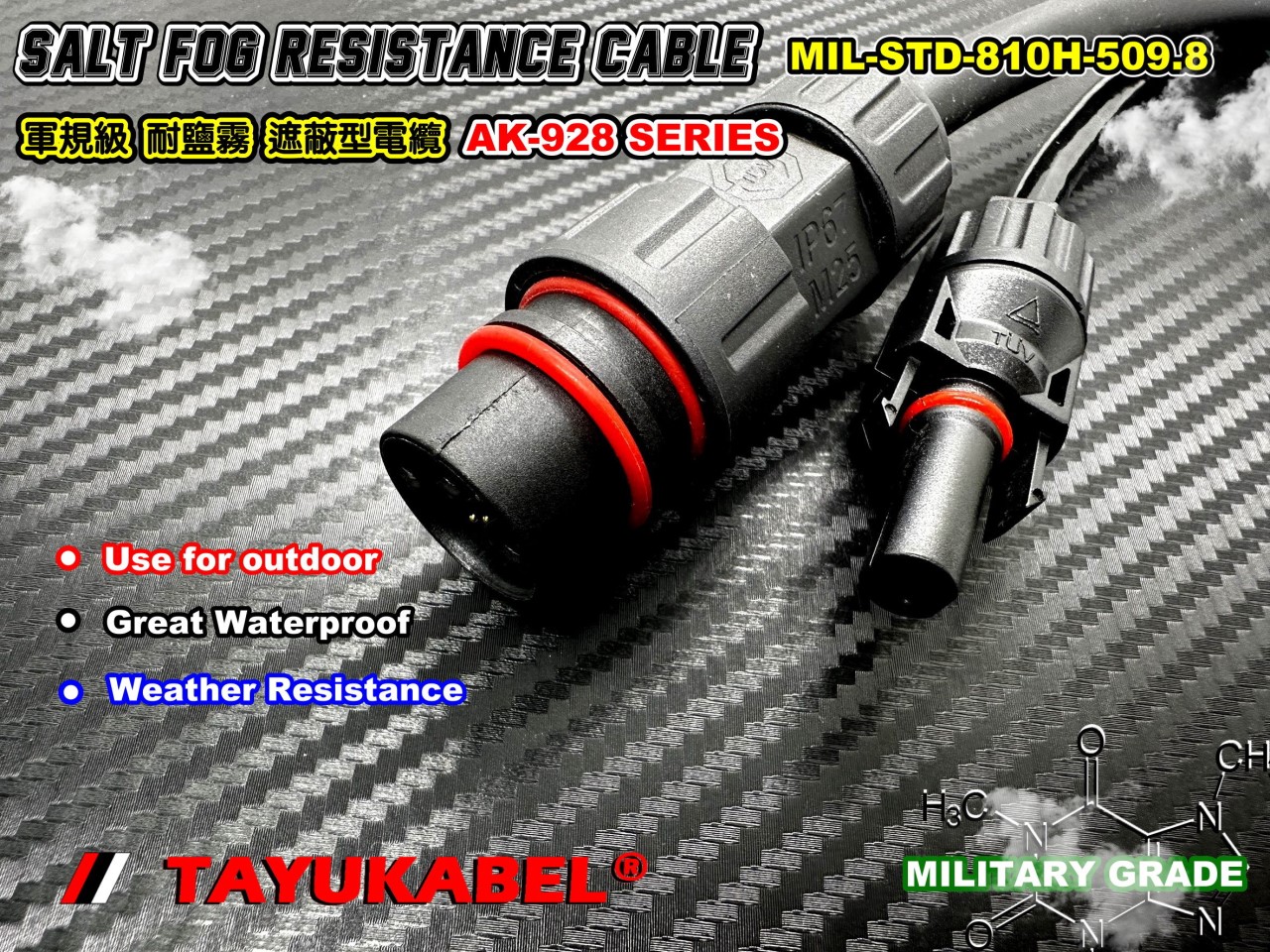

TAYUKABEL® 耐鹽霧plus 船舶專用無鹵電纜

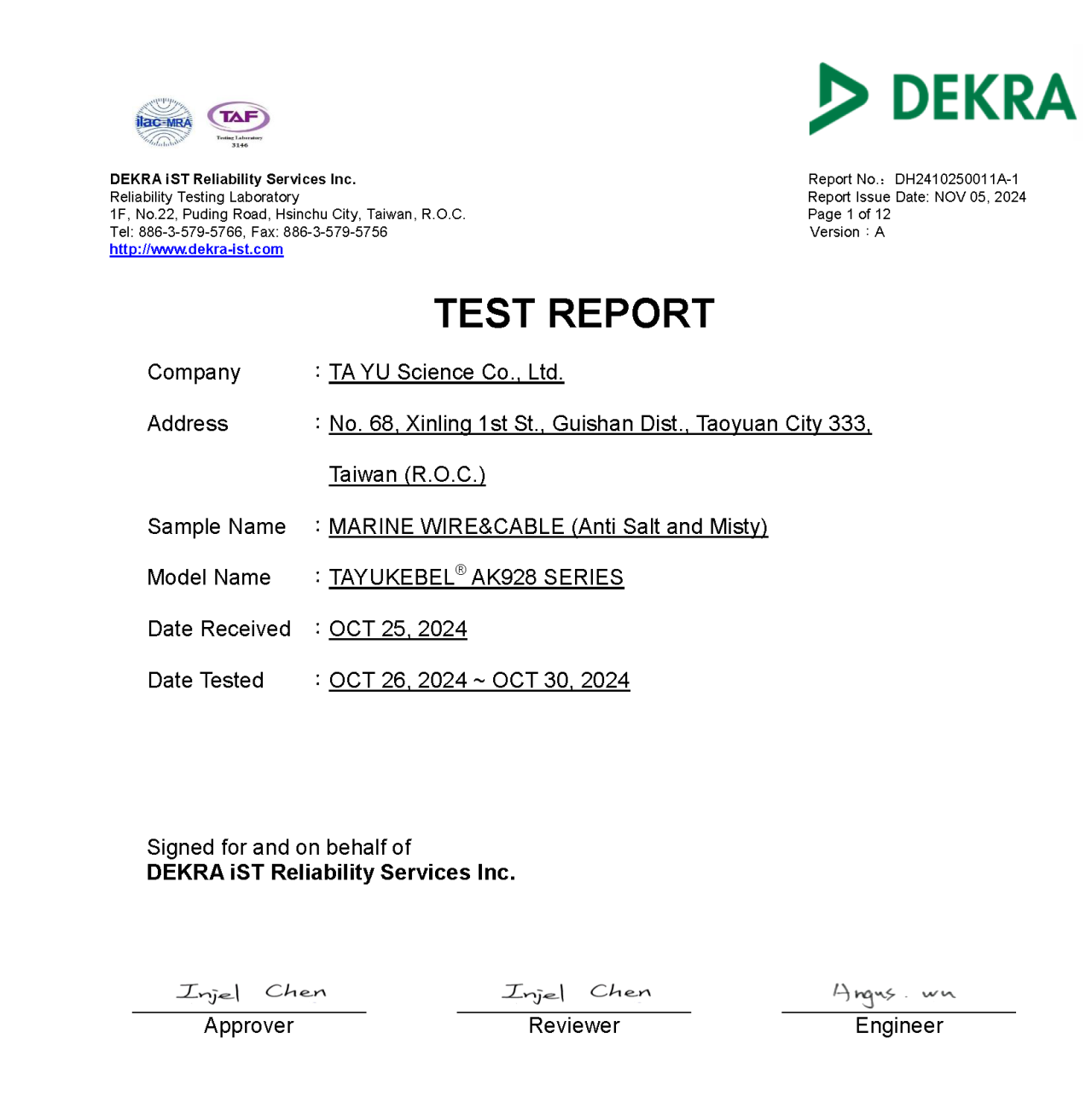

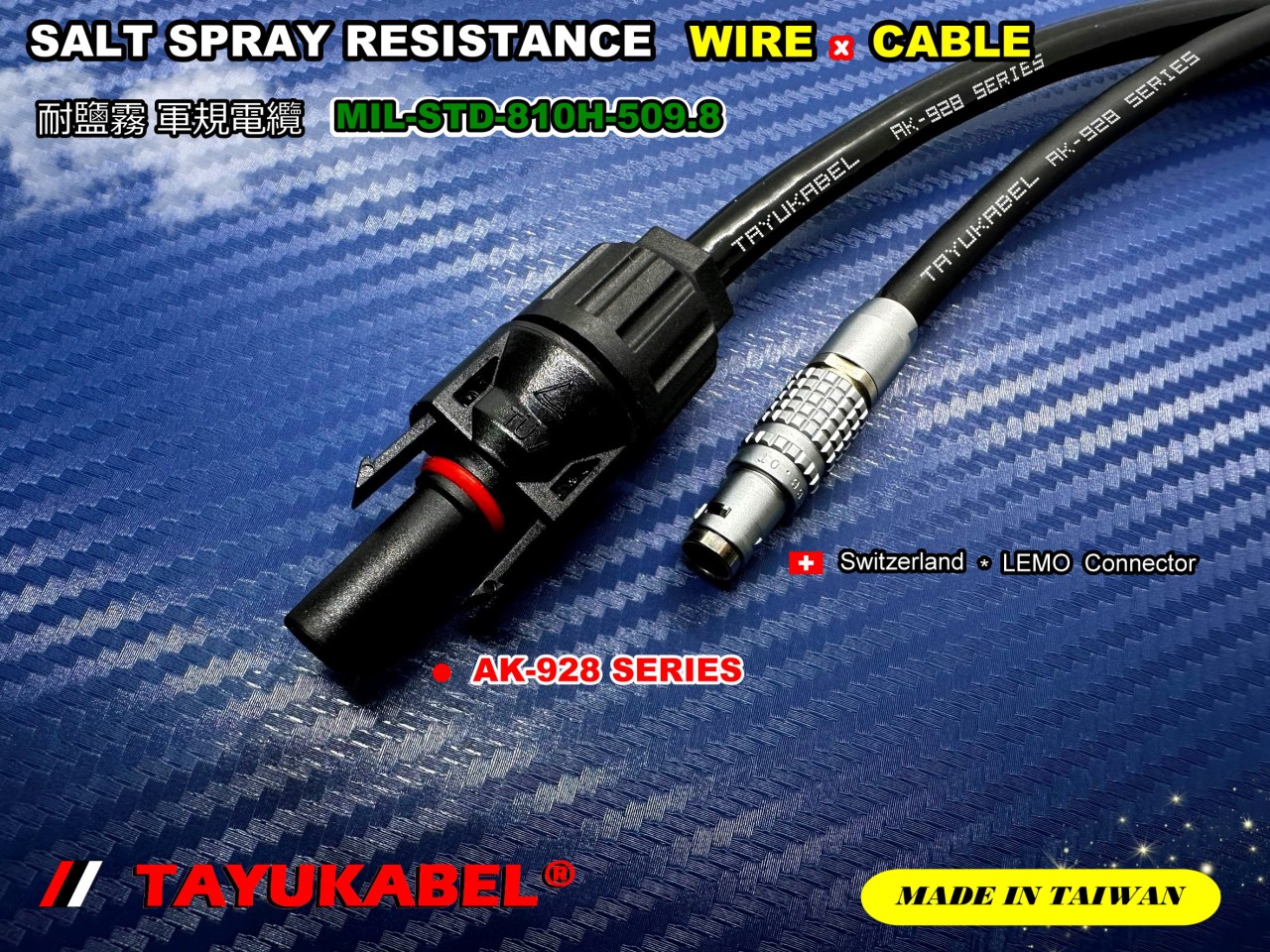

AK-928 SERIES (AK928系列)通過德商Vötsch DEKRA LAB認證通過 MIL-STD-810H-509.8 軍規試驗(抗鹽霧標準)。
MIL-STD-810H標準是確保產品各種嚴苛的氣候環境下具備良好的耐候性以及物理強度；包括極端溫度、濕度、抗輻射日照、耐衝擊、耐振動等。
AK 928 SERIES (AK928 series) has passed the German Vötsch DEKRA LAB certification and passed the MIL-STD-810H-509.8 military standard.
The MIL-STD-810H standard ensures that products have good weather resistance and physical strength in various harsh climate environments; including extreme temperatures, humidity, radiation resistance, impact resistance, vibration resistance, etc.

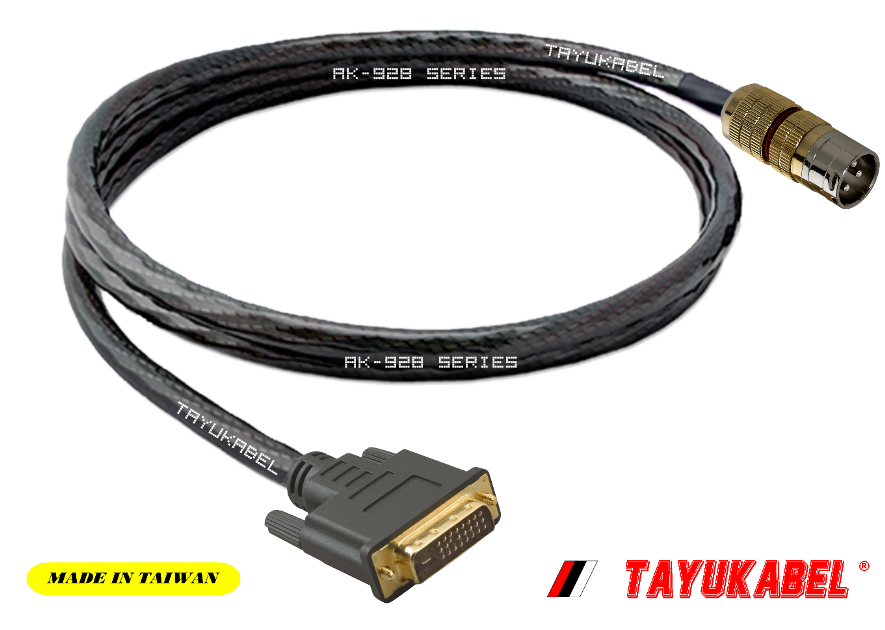

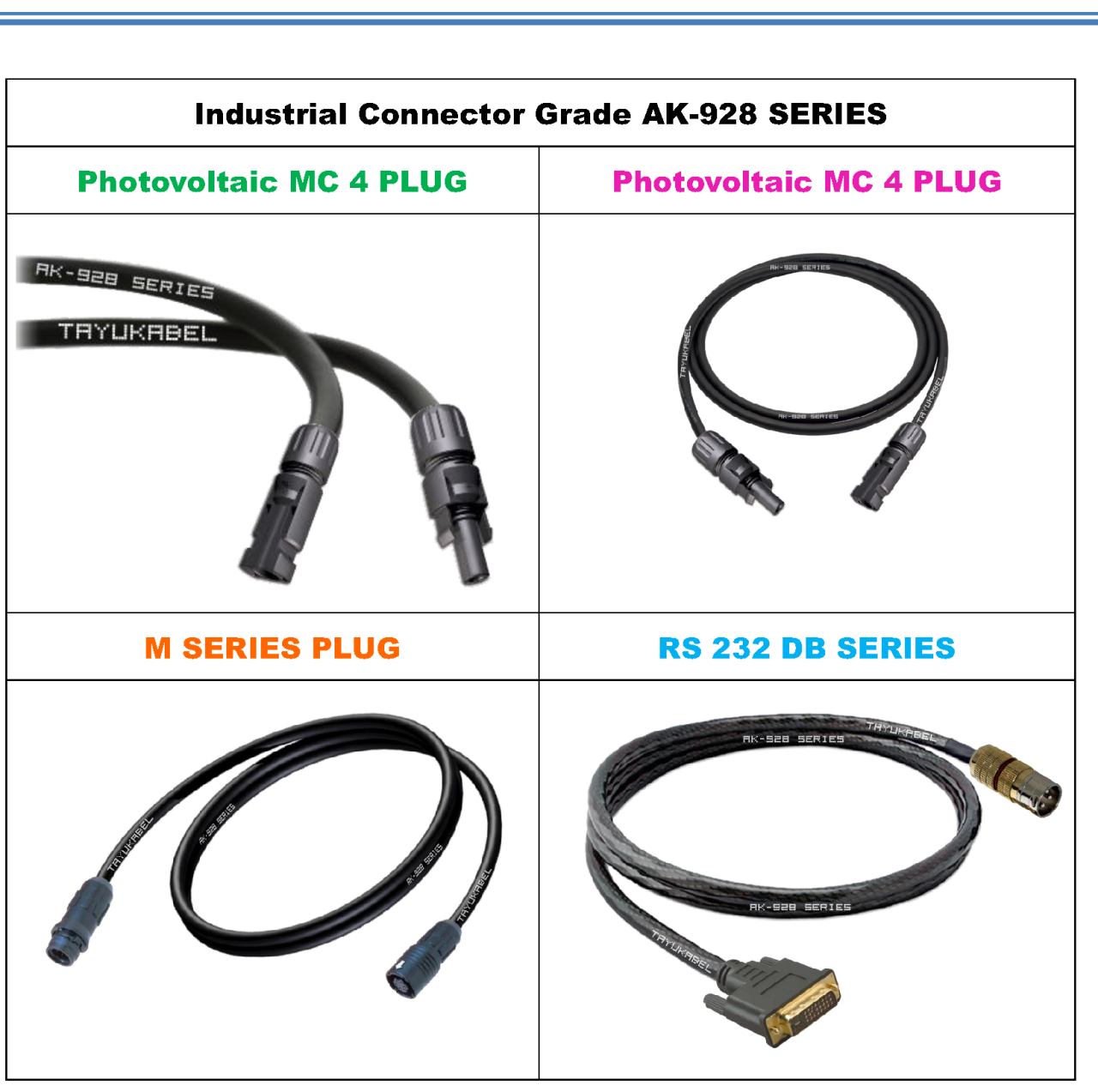

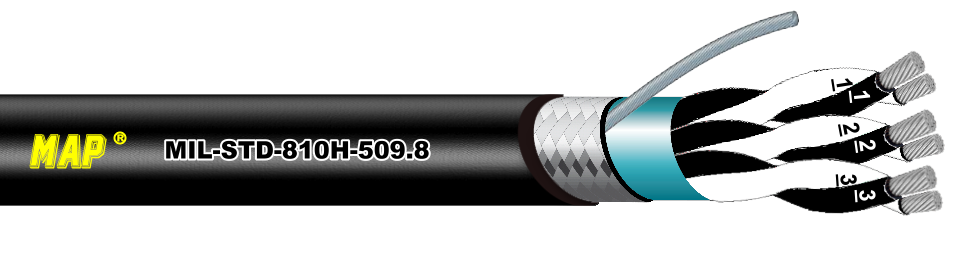

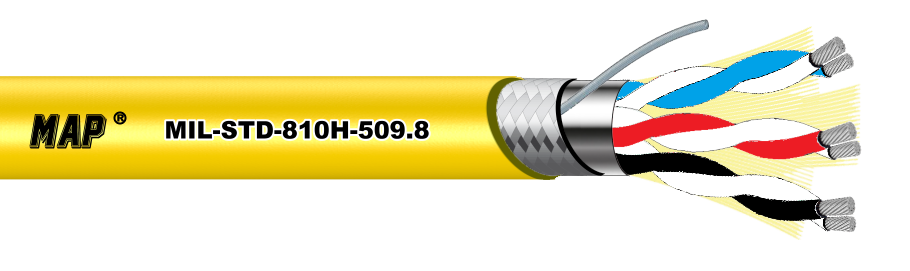

【AK-928 SERIES】TPE(TPU) SHIELDED CABLE
|
SKU(Part No.)
|
Connector
|
Cable Spec.
|
Length: Meters
|
|
AK928-PV4
|
MC 4 PLUG
(PV CONNECTOR)
|
TUV TPE Wire 4mm²
|
15 Meters
|
|
AK928-PV6
|
MC 4 PLUG
(PV CONNECTOR)
|
TUV TPE Wire 6mm²
|
20 Meters
|
|
AK928-201P
|
Military Plug
M-SERIES
|
UL 20549 20AWG 1PR
|
3 Meters
|
|
AK928-202P
|
Military Plug
M-SERIES
|
UL 20549 20AWG 2PR
|
5 Meters
|
|
AK928-243P
|
Military Plug
M-SERIES
|
UL 20549 24AWG 3PR
|
10 Meters
|

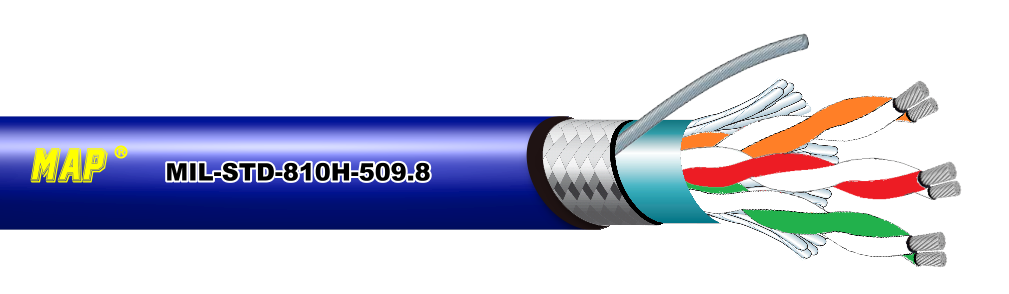

【AK-928 SERIES】TPU CONTROL CABLE
|
SKU(Part No.)
|
Connector
|
Cable Spec.
|
Length : Meters
|
|
AK928-0751P
|
Military Plug M-SERIES
|
0.75mm²x1P (18AWG)
|
3 Meters
|
|
AK928-0752P
|
Military Plug M-SERIES
|
0.75mm²x2P (18AWG)
|
15 Meters
|
|
AK928-0753P
|
Military Plug M-SERIES
|
0.75mm²x3P (18AWG)
|
20 Meters
|
|
AK928-1251P
|
Military Plug M-SERIES
|
1.25mm²x1P (16AWG)
|
10 Meters
|
|
AK928-1252P
|
Military Plug M-SERIES
|
1.25mm²x2P (16AWG)
|
15 Meters
|
【AK-928 SERIES】TPU COMPOSITE CABLE
|
SKU(Part No.)
|
Connector
|
Cable Spec.
|
Length : Meters
|
|
AK928-201P242P
|
DB9-DB9 Plug
|
20AWGx1P+24AWGx2P
|
5 Meters
|
|
AK928-202P242P
|
DB9-DB9 Plug
|
20AWGx2P+24AWGx2P
|
10 Meters
|
|
AK928-203P242P
|
DB15-DB15 Plug
|
20AWGx3P+24AWGx2P
|
20 Meters
|
|
AK928-204P242P
|
DB15-DB15 Plug
|
20AWGx4P+24AWGx2P
|
10 Meters
|
|
AK928-205P242P
|
DB19-DB19 Plug
|
20AWGx5P+24AWGx2P
|
15 Meters
|

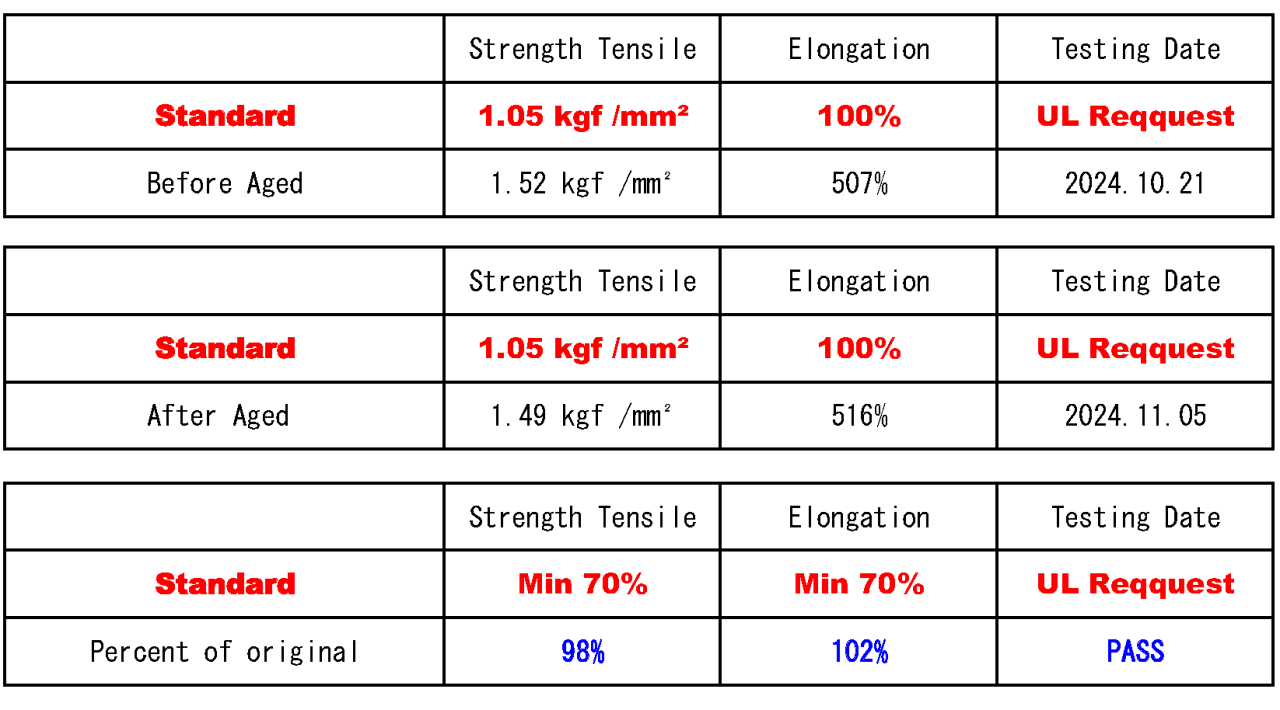

UL758 Aged before and after aged testing record.
遵循UL758標準，進行耐鹽霧老化前/後【伸長率】、【抗張強度】檢驗，數值如下
