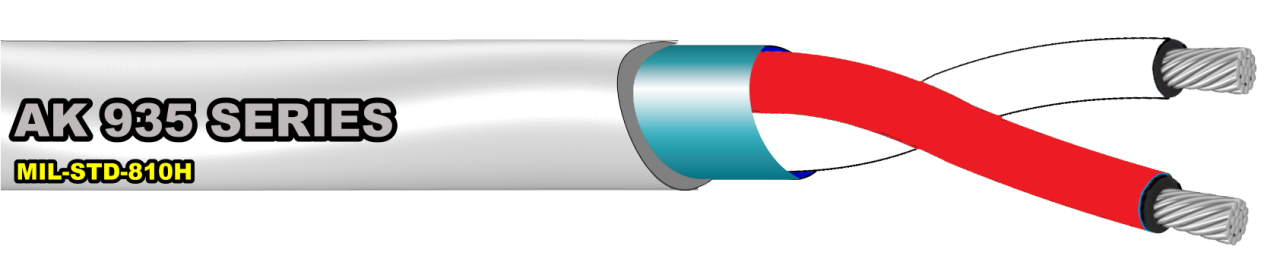

MIL-STD-810H 軍規級電纜 TAYUKABEL® AK 935 SERIES系列
AK 935 SERIES (AK935系列)通過德商Vötsch DEKRA LAB認證，產品符合MIL-STD-810H軍規標準。
MIL-STD-810H標準是確保產品各種嚴苛的氣候環境下具備良好的耐候性以及物理強度；包括極端溫度、濕度、抗輻射日照、耐衝擊、耐振動等。
AK 935 SERIES (AK935 series) has passed the German Vötsch DEKRA LAB certification and passed the MIL-STD-810H military standard.
The MIL-STD-810H standard ensures that products have good weather resistance and physical strength in various harsh climate environments; including extreme temperatures, humidity, radiation resistance, impact resistance, vibration resistance, etc.
AK935 SERIES PFA-PFA CABLE 【Non-Shielded】
|
SKU (Part No.)
|
AWG x Cores
|
Inner Wire Dia.
|
Overall Dia.Ø
|
|
MIL-PFA-N-221
|
22AWG x 1 Pair
|
Ø 1.35mm
|
Approx Ø 3.30
|
|
MIL-PFA-N-222
|
22AWG x 3 C
|
Ø 1.35mm
|
Approx Ø 3.40
|
|
MIL-PFA-N-223
|
22AWG x 4 C
|
Ø 1.35mm
|
Approx Ø 3.80
|
AK935 SERIES PFA-PFA CABLE 【Aluminum Foil Shielded】
|
SKU (Part No.)
|
AWG x Cores
|
Inner Wire Dia.
|
Overall Dia.Ø
|
|
MIL-PFA-A-221
|
22AWG x 1 Pair
|
Ø 1.35mm
|
Approx Ø 3.40
|
|
MIL-PFA-A-222
|
22AWG x 3 C
|
Ø 1.35mm
|
Approx Ø 3.50
|
|
MIL-PFA-A-223
|
22AWG x 4 C
|
Ø 1.35mm
|
Approx Ø 3.90
|
AK935 SERIES PFA-PFA CABLE 【Aluminum Foil +Braided Shielded】
|
SKU (Part No.)
|
AWG x Cores
|
Inner Wire Dia.
|
Overall Dia.Ø
|
|
MIL-PFA-A-221
|
22AWG x 1 Pair
|
Ø 1.35mm
|
Approx Ø 3.75
|
|
MIL-PFA-A-222
|
22AWG x 3 C
|
Ø 1.35mm
|
Approx Ø 3.85
|
|
MIL-PFA-A-223
|
22AWG x 4 C
|
Ø 1.35mm
|
Approx Ø 4.25
|
AK935 SPECIFICATION CATALOG DOWNLOAD
AK935 E-CATALOG DOWNLOAD
