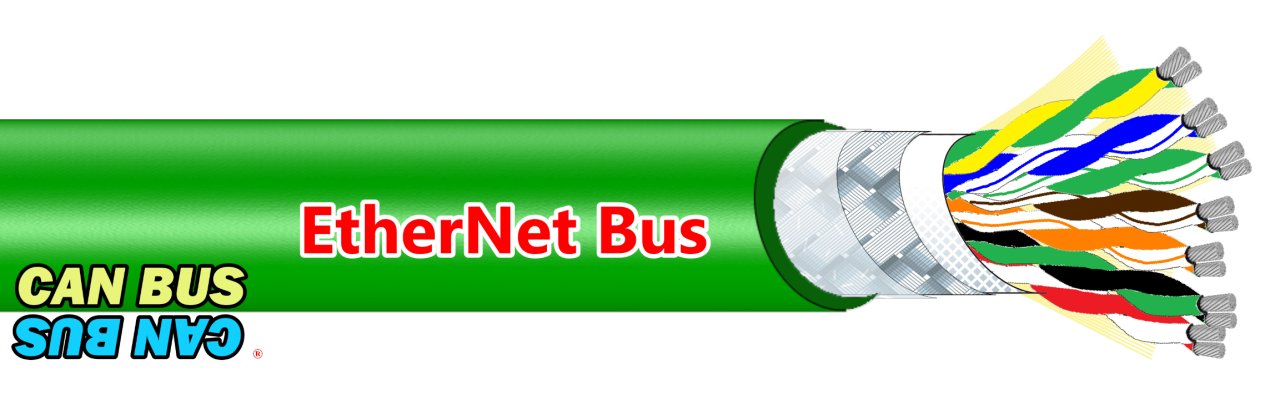

【EtherNet Bus 100 ohm】 ETFE-TPU CABLE 機器手臂專用電纜
Cond. Material (導體材質): Bare Copper / Tinned Copper, Diameter=0.08mm
Ins. Material (絕緣層材質): ETFE Teflon (F-40) 【乙烯與四氟乙烯共聚物 】
Filler Material (填充物材質): Cotton Yarn Filler 【抗拉棉繩】
1st Shielded Material (第一層遮蔽材質): Aluminum Foil Tape Wrapping【鋁箔麥拉帶】
2nd Shielded Material (第二層遮蔽材質): Tinned Copper Braided 85%【鍍錫銅網編織】
Wrapping Material (包帶材質): Tissue Tape Wrapping【棉紙包帶】
Sheath Material (披覆材質): Ether TPU/PUR【聚醚型TPU/PUR】
Rated Temperature(Fixed) 額定耐溫: 80°C
Rated Voltage 額定電壓: 300V / 600V
Cable Characteristics Impedance: 特性阻抗 100ohm
Cable Flame 電纜難燃性: Compliant with VW-1 符合單根垂直燃燒標準
Bending Radius彎曲半徑: R ≥8xOverall Diameter (R ≥ 8D)
Cable Trait I 電纜線特性: Oil-Resistance acc.to UL758 OR-01【符合耐油性】
Cable Trait II 電纜線特性: Cold-Resistance acc. to UL758 【符合耐寒性】
Cable Trait III 電纜線特性: Hydrolysis Resistance【耐水解】
Cable Trait IV 電纜線特性: Abrasion Resistance【耐磨損】
Cable Trait V 電纜線特性: Tear Resistance【耐撕裂】
Cable Trait VI 電纜線特性: Mold Resistance【耐黴菌】
|
公稱截面積
AWG/mm²
|
導體結構
mm x No.
|
芯線數目
No. of Cores
|
芯線外徑
Wire Dia.
|
總完成外徑
Overall Dia.
|
導體電阻
Ω/KM@20°C
|
|
21AWG (0.5mm²)
|
0.08mm/14/7
|
3 C
|
2.05 mm
|
7.0 mm
|
42.5 ohm/KM
|
|
4 C
|
7.6 mm
|
|
6 C
|
8.8 mm
|
|
8 C
|
10.4 mm
|
|
12 C
|
12.6 mm
|
|
20 P
|
21.5 mm
|
|
19AWG (0.75mm²)
|
0.08mm/21/7
|
3 C
|
2.15 mm
|
7.4 mm
|
26.6 ohm/KM
|
|
4 C
|
8.0 mm
|
|
6 C
|
9.5 mm
|
|
8 C
|
11.0 mm
|
|
12 C
|
13.3 mm
|
|
18AWG (1.0mm²)
|
0.08mm/28/7
|
3 C
|
2.35 mm
|
7.8 mm
|
20.1 ohm/KM
|
|
4 C
|
8.5 mm
|
|
6 C
|
10.1 mm
|
|
8 C
|
11.5 mm
|
|
12 C
|
14.3 mm
|
|
16AWG (1.5mm²)
|
0.08mm/42/7
|
3 C
|
2.75mm
|
8.7 mm
|
13.8 ohm/KM
|
|
4 C
|
9.6 mm
|
|
6 C
|
11.4 mm
|
|
8 C
|
13.6 mm
|
|
12 C
|
16.7 mm
|
|
14AWG (2.5mm²)
|
0.08mm/70/7
|
3 C
|
3.25 mm
|
10.0 mm
|
8.21 ohm/KM
|
|
4 C
|
11.0 mm
|
|
6 C
|
13.1 mm
|
|
8 C
|
15.4 mm
|
|
12 C
|
20.1 mm
|
|
12AWG (4.0mm²)
|
0.08mm/73/7
|
3 C
|
3.85 mm
|
12.0 mm
|
5.32 ohm/KM
|
|
4 C
|
13.2 mm
|
|
6 C
|
15.5 mm
|
|
8 C
|
18.1 mm
|
|
12 C
|
21.5 mm
|
