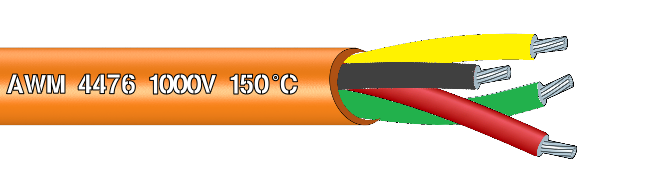

8.3 UL4476 Braidless Silicone EV Cable 矽橡膠耐熱電纜-電動車專用

AWM 4476 EV cable provides a high power charging function. The cable makes it possible for drivers to charge their electric vehicles within a few minutes and to travel significantly longer distances. AWM 4476 EV cable has a flexible、high voltage against、heating trait. Rated Temperature: 150℃ or 200℃.

AWM 4476 EV電纜提供高功率充電功能。使駕駛員可以在幾分鐘內為電動汽車充電，並行駛更長的距離。 AWM 4476 EV電纜具有柔軟，耐高壓，耐高溫的特性。線纜額定耐溫: 150℃ or 200℃。

美規公稱 AWG	導體材質 Material	芯線數 No. of Core	導體結構 STRUCTURE	芯線絞合外徑 Inner Dia	外被厚度 THICKNESS	總完成外徑/mm OVERALL DIA
18AWG	Tinned Copper	2C	0.254mm / 16	6.9 mm	1.15mm	9.2 mm
Tinned Copper	3C	0.254mm / 16	7.4 mm	1.15mm	9.7 mm
Tinned Copper	4C	0.254mm / 16	8.3 mm	1.15mm	10.6 mm
16AWG	Tinned Copper	2C	0.254mm / 26	7.5 mm	1.15mm	9.8 mm
Tinned Copper	3C	0.254mm / 26	8.1 mm	1.15mm	10.4mm
Tinned Copper	4C	0.254mm / 26	9.1 mm	1.15mm	11.4 mm
14AWG	Tinned Copper	2C	0.254mm / 41	8.4 mm	1.15mm	10.7 mm
Tinned Copper	3C	0.254mm / 41	9.1 mm	1.15mm	11.4 mm
Tinned Copper	4C	0.254mm / 41	10.2 mm	1.15mm	12.5 mm
12AWG	Tinned Copper	2C	0.254mm / 65	9.3 mm	1.15mm	11.6 mm
Tinned Copper	3C	0.254mm / 65	10.0 mm	1.15mm	12.3 mm
Tinned Copper	4C	0.254mm / 65	10.7 mm	1.15mm	13.0 mm
10AWG	Tinned Copper	2C	0.254mm / 105	10.6 mm	1.15mm	12.9 mm
Tinned Copper	3C	0.254mm / 105	11.5 mm	1.15mm	13.8 mm
Tinned Copper	4C	0.254mm / 105	12.2 mm	1.15mm	14.5 mm
8AWG	Tinned Copper	2C	0.254mm / 161	6.3 mm	1.15mm	13.0 mm
Tinned Copper	3C	0.254mm / 161	6.3 mm	1.15mm	15.8 mm
Tinned Copper	4C	0.254mm / 161	6.3 mm	1.15mm	17.2 mm

美規公稱

AWG

導體材質

Material

芯線數

No. of Core

導體結構

STRUCTURE

芯線絞合外徑

Inner Dia

外被厚度

THICKNESS

總完成外徑/mm

OVERALL DIA

18AWG

Tinned Copper

0.254mm / 16

6.9 mm

1.15mm

9.2 mm

Tinned Copper

0.254mm / 16

7.4 mm

1.15mm

9.7 mm

Tinned Copper

0.254mm / 16

8.3 mm

1.15mm

10.6 mm

16AWG

Tinned Copper

0.254mm / 26

7.5 mm

1.15mm

9.8 mm

Tinned Copper

0.254mm / 26

8.1 mm

1.15mm

10.4mm

Tinned Copper

0.254mm / 26

9.1 mm

1.15mm

11.4 mm

14AWG

Tinned Copper

0.254mm / 41

8.4 mm

1.15mm

10.7 mm

Tinned Copper

0.254mm / 41

9.1 mm

1.15mm

11.4 mm

Tinned Copper

0.254mm / 41

10.2 mm

1.15mm

12.5 mm

12AWG

Tinned Copper

0.254mm / 65

9.3 mm

1.15mm

11.6 mm

Tinned Copper

0.254mm / 65

10.0 mm

1.15mm

12.3 mm

Tinned Copper

0.254mm / 65

10.7 mm

1.15mm

13.0 mm

10AWG

Tinned Copper

0.254mm / 105

10.6 mm

1.15mm

12.9 mm

Tinned Copper

0.254mm / 105

11.5 mm

1.15mm

13.8 mm

Tinned Copper

0.254mm / 105

12.2 mm

1.15mm

14.5 mm

8AWG

Tinned Copper

0.254mm / 161

6.3 mm

1.15mm

13.0 mm

Tinned Copper

0.254mm / 161

6.3 mm

1.15mm

15.8 mm

Tinned Copper

0.254mm / 161

6.3 mm

1.15mm

17.2 mm
