9.2 MAP® 海巴龍LHH 電纜(氯磺化聚乙烯)

分享到

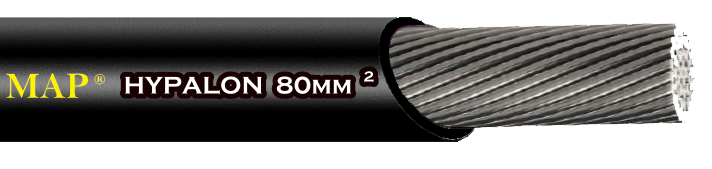

MAP® HYPALON CABLE LHH WIRE

海巴龍絕緣引出線

產品說明 PRODUCT DESCRIPTION

*導體為鍍錫銅 Tinned stranded copper conductor

*氯磺化聚乙烯絕緣 LHH insulation

*環境溫度-40~100°C Ambient temperature-40~100°

*額定電壓600V Rated voltage:600V

*符合JIS C3315 、CNS-5747

海巴龍LHH(氯磺化聚乙烯)為美國杜邦研發之絕緣材料。具有良好的耐磨性、耐水性、耐候性及耐臭氧性等特質。

Hypalon wire has a heat resistance trait, and can be used in generators, motors, transformers/motor export lines, and distribution board wiring.

截面積 AREA MM²	導體結構 NO.X MM	絞合外徑 STARND DIA	絕緣厚度 THICKNESS	完成外徑 OVERALL DIA	導體電阻 CONDUCT RES	電流表 MAX CUR
0.5mm ²	20/0.18	1.0 mm	1.1 mm	3.3 mm ± 0.6	38.6 Ω/KM	13A
0.75mm ²	30/0.18	1.2 mm	1.1 mm	3.5 mm ± 0.6	25.8 Ω/KM	16A
1.25mm ²	50/0.18	1.5 mm	1.1 mm	3.9 mm ± 0.6	15.5 Ω/KM	22A
2.0mm ²	37/0.26	1.8 mm	1.1 mm	4.2 mm ± 0.6	9.91 Ω/KM	30A
3.5mm ²	45/0.32	2.5 mm	1.1 mm	4.9 mm ± 0.6	5.38 Ω/KM	45A
5.5mm ²	35/0.45	3.1 mm	1.1 mm	5.5 mm ± 0.6	3.50 Ω/KM	58A
8mm ²	50/0.45	3.7 mm	1.1 mm	6.1 mm ± 0.6	2.45 Ω/KM	75A
14mm ²	88/0.45	4.9 mm	1.4 mm	7.9 mm ± 0.6	1.39 Ω/KM	105A
22mm ²	7/20/0.45	7.0 mm	1.4 mm	10.0 mm ± 0.6	0.892 Ω/KM	140A
30mm ²	7/27/0.45	8.1 mm	1.4 mm	11.1 mm ± 0.6	0.661 Ω/KM	180A
38mm ²	7/34/0.45	9.1 mm	1.4 mm	12.1 mm ± 0.6	0.525 Ω/KM	210A
50mm ²	19/16/0.45	10.4 mm	1.8 mm	14.2 mm ± 0.6	0.411 Ω/KM	250A
60mm ²	19/20/0.45	11.6 mm	1.8 mm	15.4 mm ± 0.6	0.329 Ω/KM	290A
80mm ²	19/27/0.45	13.5 mm	1.8 mm	17.3 mm ± 0.6	0.243 Ω/KM	350A
100mm ²	19/34/0.45	15.2 mm	2.3 mm	20.0 mm ± 0.6	0.193 Ω/KM	410A
125mm ²	19/42/0.45	16.2 mm	3.0 mm	22.0 mm ± 0.6	0.156 Ω/KM	480A
150mm ²	37/25/0.45	17.4 mm	3.0 mm	23.5 mm ± 0.6	0.136 Ω/KM	520A
200mm ²	37/34/0.45	20.4 mm	3.0 mm	26.5 mm ± 0.6	0.0993 Ω/KM	630A
250mm ²	37/42/0.45	22.6 mm	3.0 mm	28.5 mm ± 0.6	0.0803 Ω/KM	720A
325mm ²	37/55/0.45	25.9 mm	3.0 mm	32.5 mm ± 0.6	0.0614 Ω/KM	840A
