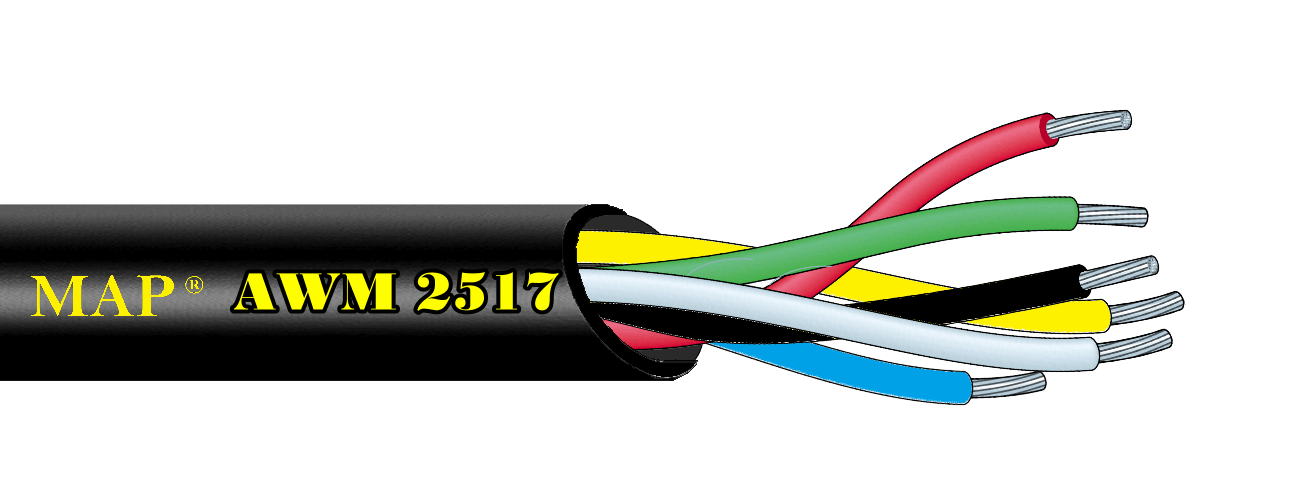

產品說明 PRODUCT DESCRIPTION
*採用0.08mm錫銅或裸銅絞合導體 Use 0.08mm-tinned or bare stranded copper conductor
*高抗扭.耐繞曲絕緣材料 Flexible PVC Insulation/Jacket
*額定溫度105°C Rated temperature 105°C
*額定電壓300伏特 Rated voltage:300V
*信賴性測試 達耐曲折1000萬次 Pass 10 million banding times.
*耐油.耐磨性.Oil-Resistance. Abrasion.
*符合UL 規範 Available UL Verify
|
MODEL
UL2517
|
導體結構
NO.X MM
|
芯線數
NO.
|
芯線外徑
INNER DIA
|
完成外徑
OVERALL DIA
|
導體電阻
CON RESISTANCE
|
|
25AWG
|
36/0.08
|
3P
|
1.1 mm
|
6.6 mm ± 5%
|
111.0 Ω/KM max
|
|
25AWG
|
36/0.08
|
6P
|
1.1 mm
|
8.3 mm ± 5%
|
111.0 Ω/KM max
|
|
25AWG
|
36/0.08
|
10P
|
1.1 mm
|
10.3 mm ± 5%
|
111.0 Ω/KM max
|
|
25AWG
|
36/0.08
|
25C
|
1.1 mm
|
10.0 mm ± 5%
|
111.0 Ω/KM max
|
|
25AWG
|
36/0.08
|
40C
|
1.1 mm
|
11.0 mm ± 5%
|
111.0 Ω/KM max
|
|
25AWG
|
36/0.08
|
50C
|
1.1 mm
|
13.0 mm ± 5%
|
111.0 Ω/KM max
|
|
MODEL
UL2517
|
導體結構
NO.X MM
|
芯線數
NO. OF CORE
|
芯線外徑
INNER DIA
|
完成外徑
OVERALL DIA
|
導體電阻
CON RESISTANCE
|
|
24AWG
|
40/0.08
|
2C
|
1.1 mm
|
4.5 mm ± 5%
|
99.9 Ω/KM max
|
|
24AWG
|
40/0.08
|
4C
|
1.1 mm
|
5.0 mm ± 5%
|
99.9 Ω/KM max
|
|
24AWG
|
40/0.08
|
4P
|
1.1 mm
|
7.3 mm ± 5%
|
99.9 Ω/KM max
|
|
24AWG
|
40/0.08
|
5P
|
1.1 mm
|
7.5 mm ± 5%
|
99.9 Ω/KM max
|
|
24AWG
|
40/0.08
|
#24x3P+#20x1P
|
1.1 mm
|
7.5 mm ± 5%
|
99.9 Ω/KM max
|
|
24AWG
|
40/0.08
|
#24x4P+#20x1P
|
1.1 mm
|
7.5 mm ± 5%
|
99.9 Ω/KM max
|
|
MODEL
UL2517
|
導體結構
NO.X MM
|
芯線數
NO.
|
芯線外徑
INNER DIA
|
完成外徑
OVERALL DIA
|
導體電阻
CON RESISTANCE
|
|
22AWG
|
60/0.08
|
4C
|
1.4 mm
|
6.1 mm ± 5%
|
66.6 Ω/KM max
|
|
20AWG
|
100/0.08
|
4C
|
1.8 mm
|
7.0 mm ± 5%
|
40.35 Ω/KM max
|
