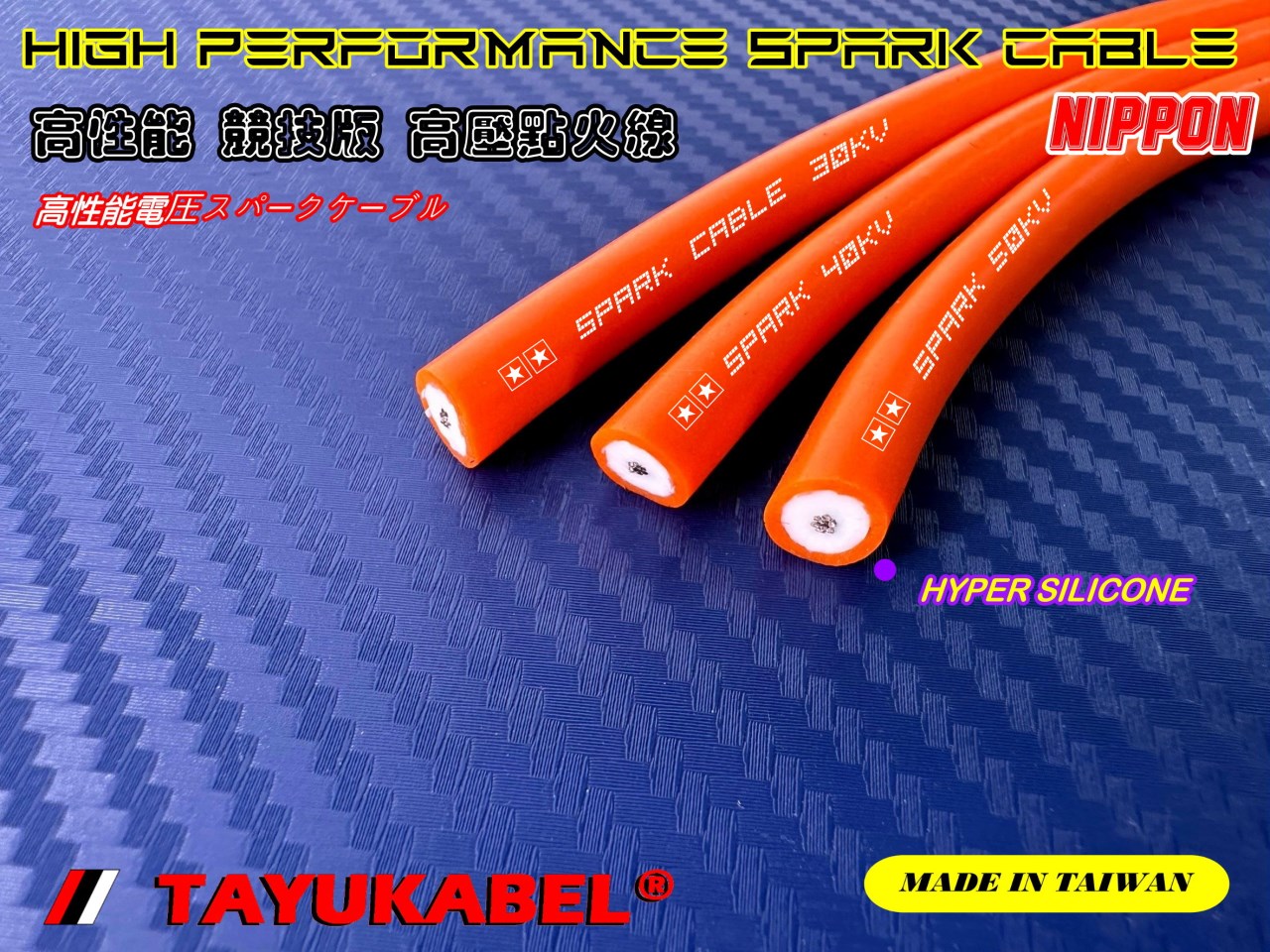

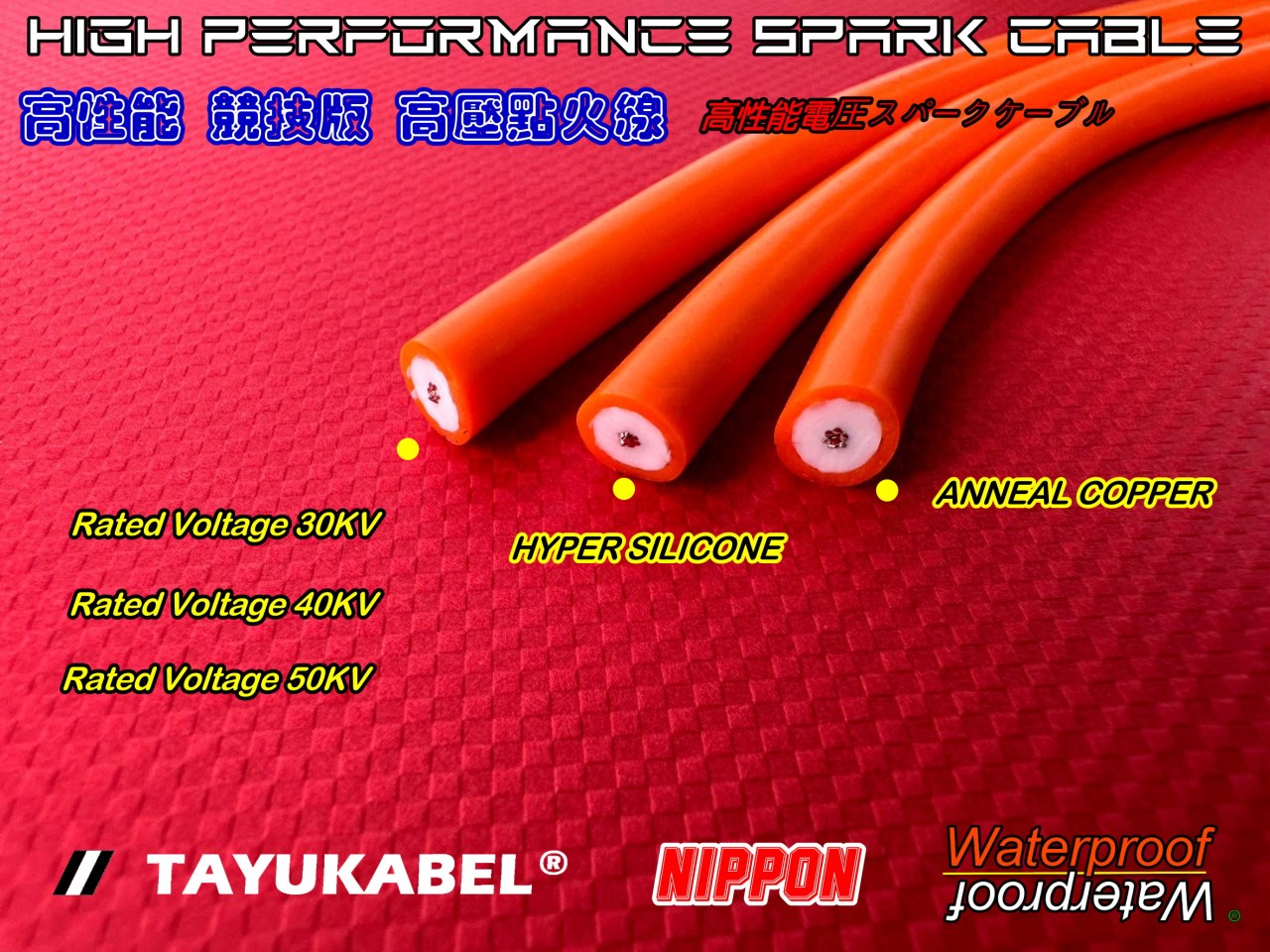

HIGH-PERFORMANCE SPARK PLUG CABLE
HIGH-PERFORMANCE IGNITION WIRE

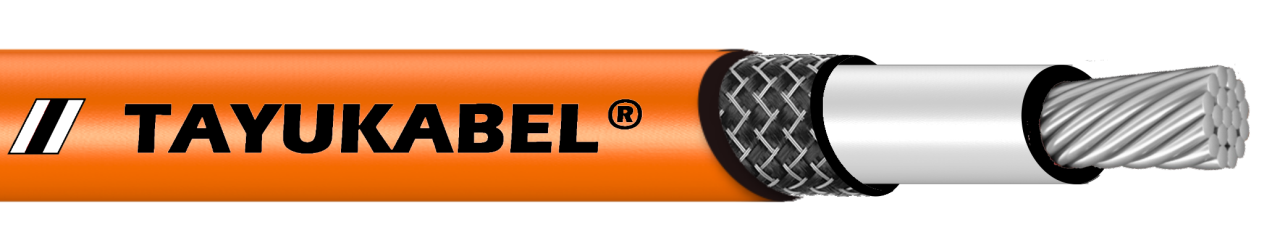

【Conductor Material】Tinned Copper
【Insulation Material】Nippon Hyper Silicone
【Braided Material】Fiber Glass Braided
【Sheath Material】Nippon Hyper Silicone
【Rated Volatgel】Voltage 30KV/ 40KV / 50KV
Sheath Color Indetify:
RAL 2003 ORANGE / RAL 1021 YELLOW
RAL 6018 GREEN / RAL 9005 BLACK
RAL 4001 VIOLET / RAL 5005 BLUE
RAL 2002 RED / RAL7040 GRAY
|
Rated Voltage
|
Insulation Thickness
|
Braided Thickness
|
Sheath Thickness
|
Overall Diameter
|
Part No. SKU
|
|
Level A →30KV
|
1.65mm
|
0.16mm
|
0.90mm
|
Ø 7.00 mm
|
AM-HIPO-30
|
|
Level B →40KV
|
2.50mm
|
0.20mm
|
1.10mm
|
Ø 9.10 mm
|
AM-HIPO-40
|
|
Level C → 50KV
|
3.55mm
|
0.20mm
|
1.20mm
|
Ø 11.50 mm
|
AM-HIPO-50
|
