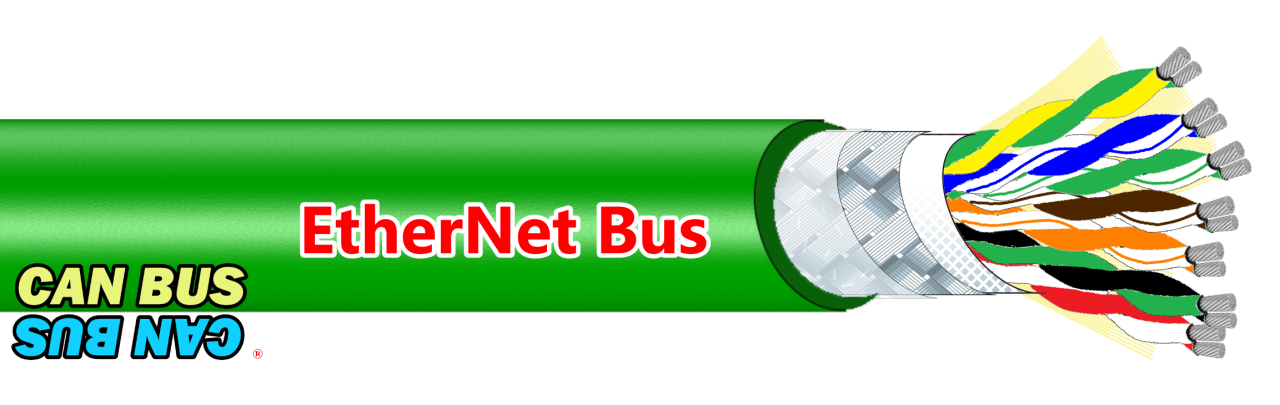

【EtherNet Bus 100 ohm】 ETFE-TPU CABLE
Cond. Material: Bare Copper / Tinned Copper, Diameter=0.08mm
Ins. Material : ETFE Teflon (F-40)
Filler Material: Cotton Yarn Filler
1st Shielded Material: Aluminum Foil Tape Wrapping
2nd Shielded Material: Tinned Copper Braided 85%
Wrapping Material: Tissue Tape Wrapping
Sheath Material: Ether TPU/PUR
Rated Temperature(Fixed) : 80°C
Rated Voltage: 300V / 600V
Cable Characteristics Impedance: 100ohm
Cable Flame: Compliant with VW-1
Bending Radius: R ≥8xOverall Diameter (R ≥ 8D)
Cable Trait I: Oil-Resistance ACC. to UL758 OL 1.
Cable Trait II: Cold-Resistance acc. to UL758
Cable Trait III: Hydrolysis Resistance
Cable Trait IV: Abrasion Resistance
Cable Trait V: Tear Resistance
Cable Trait VI: Mold Resistance
|
公稱截面積
AWG/mm²
|
導體結構
mm x No.
|
芯線數目
No. of Cores
|
芯線外徑
Wire Dia.
|
總完成外徑
Overall Dia.
|
導體電阻
Ω/KM@20°C
|
|
21AWG (0.5mm²)
|
0.08mm/14/7
|
3 C
|
2.05 mm
|
7.0 mm
|
42.5 ohm/KM
|
|
4 C
|
7.6 mm
|
|
6 C
|
8.8 mm
|
|
8 C
|
10.4 mm
|
|
12 C
|
12.6 mm
|
|
20 P
|
21.5 mm
|
|
19AWG (0.75mm²)
|
0.08mm/21/7
|
3 C
|
2.15 mm
|
7.4 mm
|
26.6 ohm/KM
|
|
4 C
|
8.0 mm
|
|
6 C
|
9.5 mm
|
|
8 C
|
11.0 mm
|
|
12 C
|
13.3 mm
|
|
18AWG (1.0mm²)
|
0.08mm/28/7
|
3 C
|
2.35 mm
|
7.8 mm
|
20.1 ohm/KM
|
|
4 C
|
8.5 mm
|
|
6 C
|
10.1 mm
|
|
8 C
|
11.5 mm
|
|
12 C
|
14.3 mm
|
|
16AWG (1.5mm²)
|
0.08mm/42/7
|
3 C
|
2.75mm
|
8.7 mm
|
13.8 ohm/KM
|
|
4 C
|
9.6 mm
|
|
6 C
|
11.4 mm
|
|
8 C
|
13.6 mm
|
|
12 C
|
16.7 mm
|
|
14AWG (2.5mm²)
|
0.08mm/70/7
|
3 C
|
3.25 mm
|
10.0 mm
|
8.21 ohm/KM
|
|
4 C
|
11.0 mm
|
|
6 C
|
13.1 mm
|
|
8 C
|
15.4 mm
|
|
12 C
|
20.1 mm
|
|
12AWG (4.0mm²)
|
0.08mm/73/7
|
3 C
|
3.85 mm
|
12.0 mm
|
5.32 ohm/KM
|
|
4 C
|
13.2 mm
|
|
6 C
|
15.5 mm
|
|
8 C
|
18.1 mm
|
|
12 C
|
21.5 mm
|
