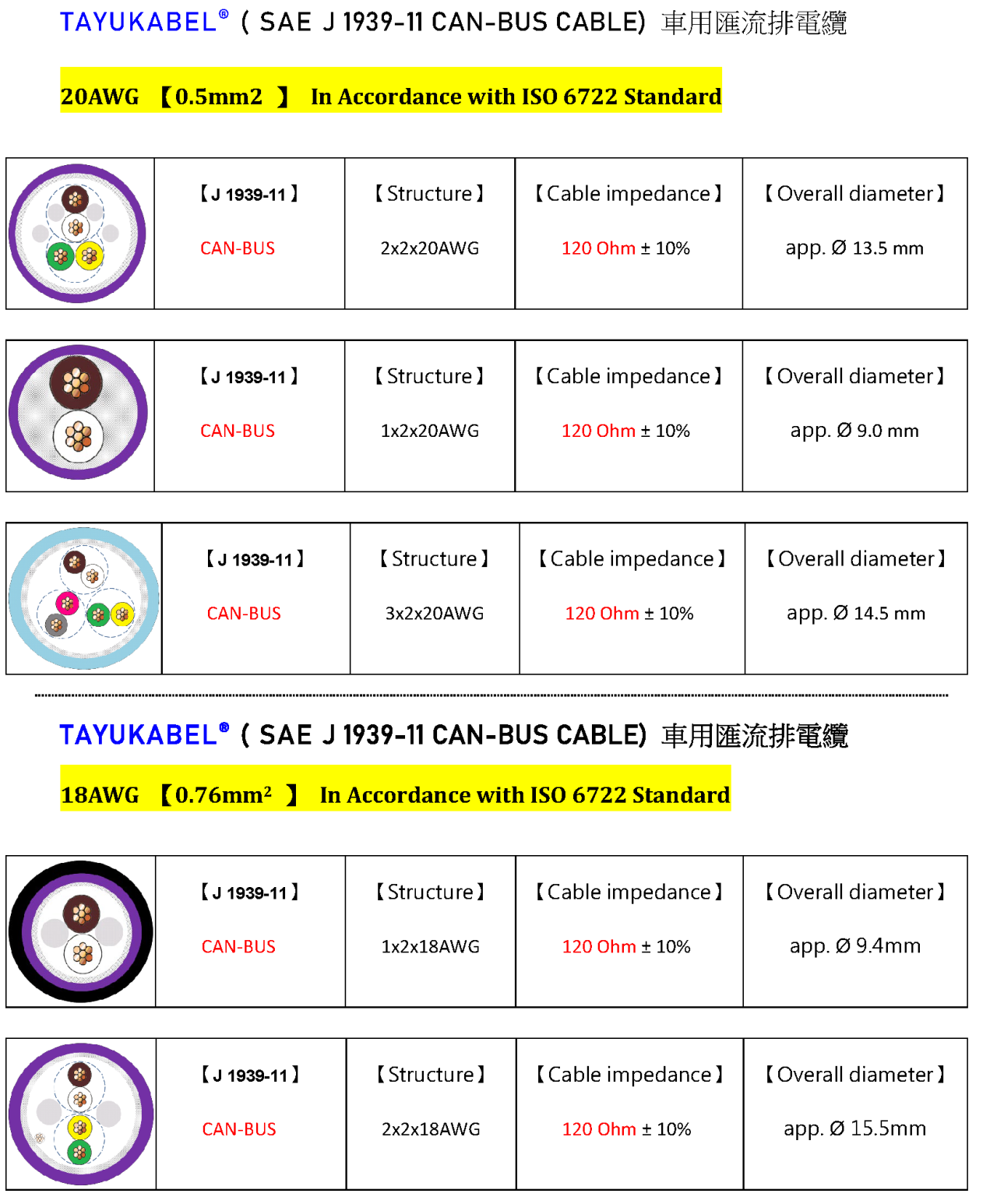

TAYUKABEL^®  SAE J 1939-11 CAN BUS CABLE 【120 ohm】

J1939/11 CAN bus cables are recommended by the Society of Automotive Engineers (SAE) for light and heavy-duty offroad vehicles and stationary applications utilizing vehicular-derived components such as generator sets.  The J1939/11 standard defines a 250 Kbit/second, twisted shielded pair physical layer construction with 120 ohm characteristic impedance.

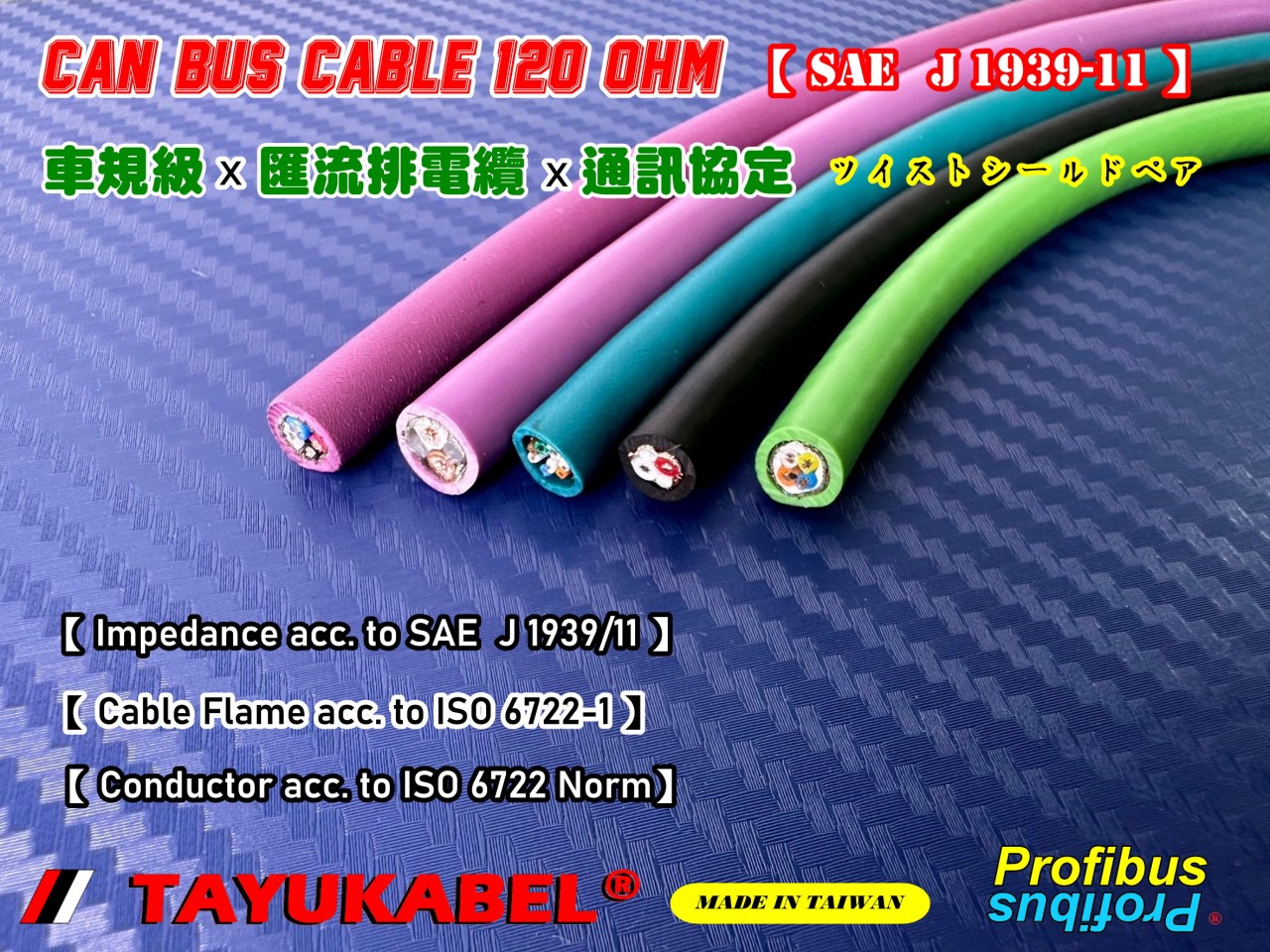

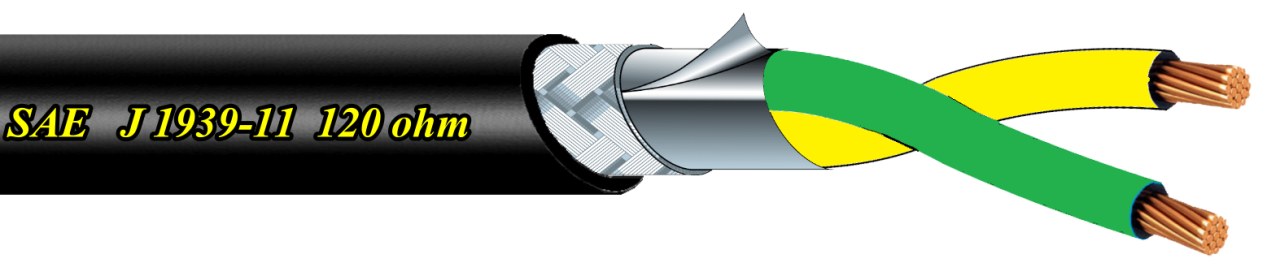

TAYUKABEL^® SAE J 1939-11 CAN BUS CABLE

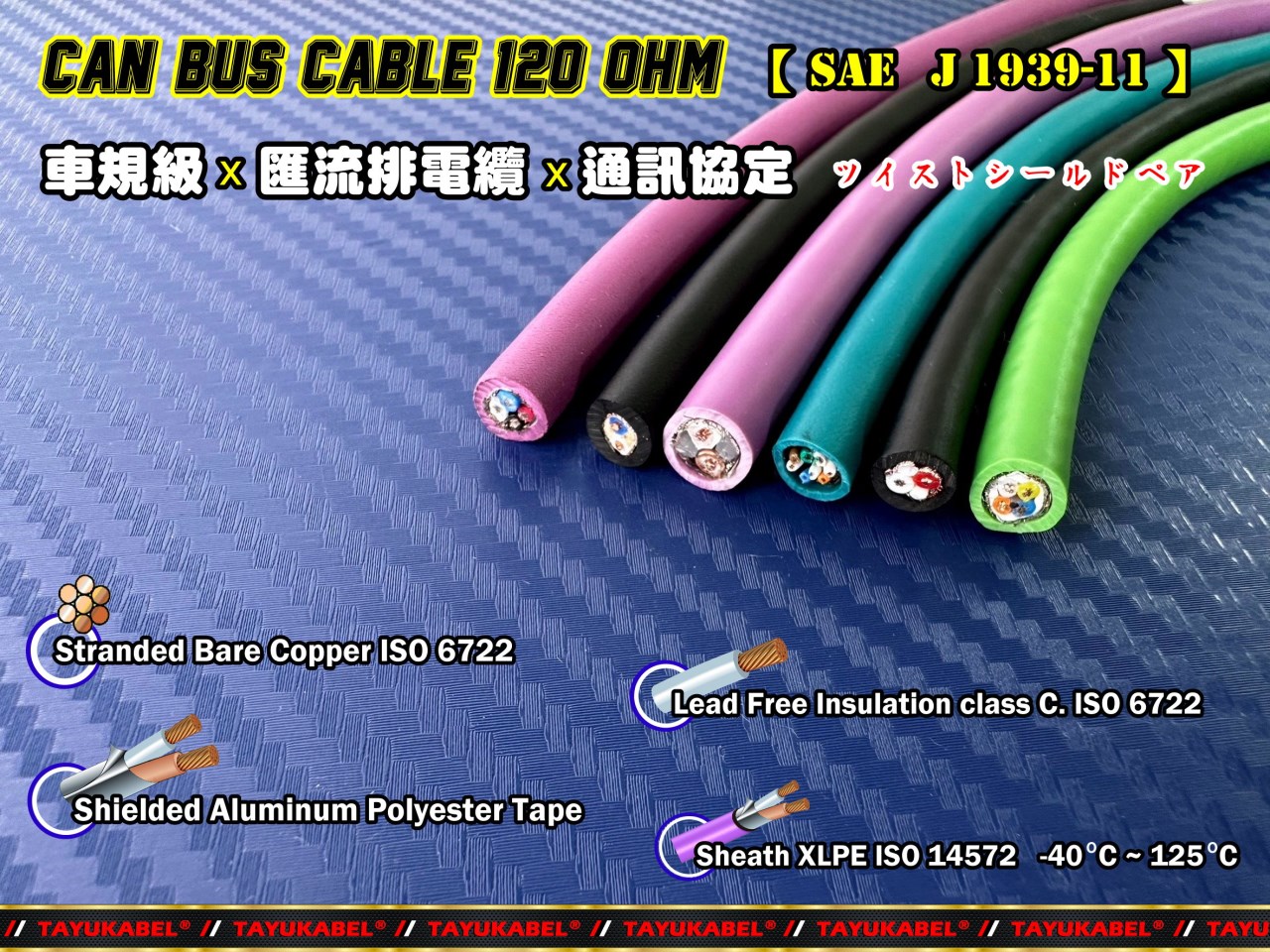

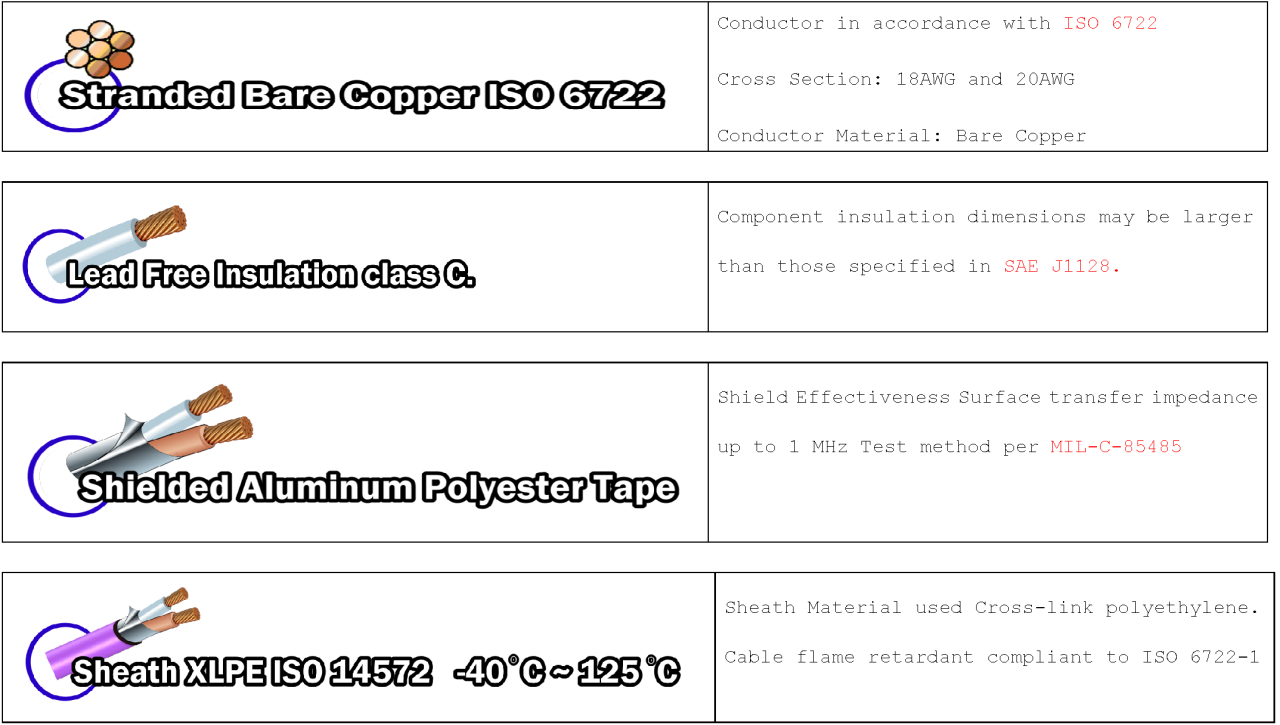

PRODUCT DESCRIPTION

* Anneal Bare Copper 20AWG and 18AWG

* XLPE Insulation Class.C ISO 6722

* Shield Effectiveness acc. to MIL-C-85485

* XLPE Insulation Class.C ISO 14572

* CAN BUS acc. to SAE J 1939-11

* Compliant to ROHS NORM

* Cable Flame Retardant acc. to ISO 6722-1

SAE J 1939-11 CAN BUS【ElECTRICAL CIRCUIT】

Data Source: https://www.sae.org/standards/content/j1939/11/

  Detailed specifications Download

   Product  Introduction DM
