21.5 TAYUKABEL® EN 45545-2 Railway Cable Assembling

TAYUKABEL® EN 45545-2 Railway Cable Assembling

EN 45545-2:2020 R15/R16 Test items:
【EN 60332-1-2 】 Cable single vertical burning test
【EN 60332-3-24 】 Vertical burning test of multiple bundles of cables or EN 50305 9.1.1 or EN 50305 9.1.2
【EN 61034-2 】 Cable smoke density test, light transmittance ≧ 60%
【EN 50305 9.2】 Cable toxicity test ITC＜6

分享到

商品特色

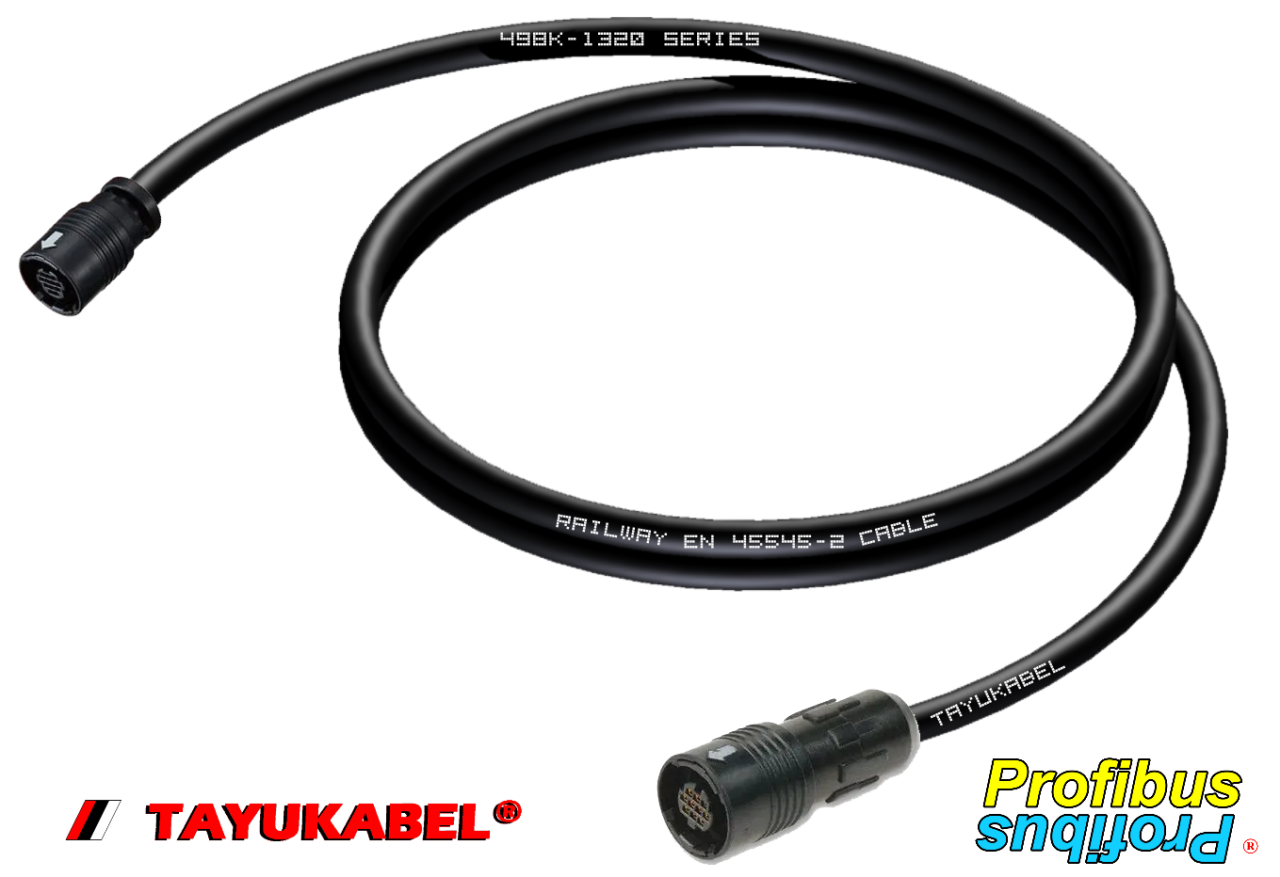

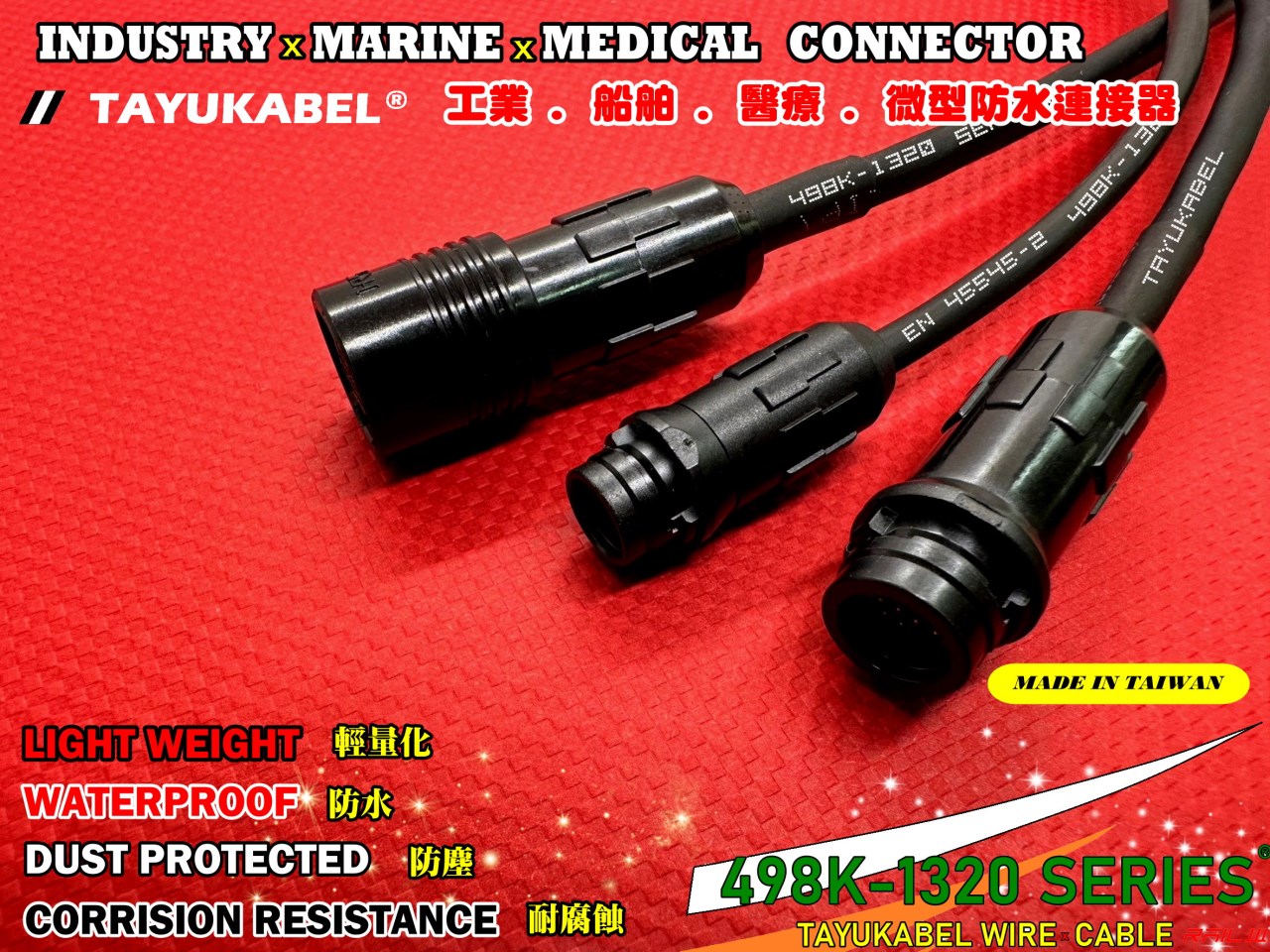

EN 45545-2 Railway Cable with Waterproof Connector

SKU (P/N)	Cable Structure	Railway Verify	Insulation &Sheath
RW-TY452-244C	24AWG x 4C Ø 5.0 mm	EN 45545-2	498K-1320 SERIES
RW-TY452-224C	22AWG x 4C Ø 5.5 mm	EN 45545-2	498K-1320 SERIES
RW-TY452-204C	20AWG x 4C Ø 6.5 mm	EN 45545-2	498K-1320 SERIES
RW-TY452-264P	24AWG x 4C+S Ø 5.2 mm	EN 45545-2	498K-1320 SERIES
RW-TY452-244P	22AWG x 4C+S Ø 5.8 mm	EN 45545-2	498K-1320 SERIES
RW-TY452-234P	20AWG x 4C+S Ø 6.8 mm	EN 45545-2	498K-1320 SERIES

SKU (P/N)	Cable Structure	Railway Verify	Insulation &Sheath
RW-TY556-264P	CAT.6 26AWG*4PR	EN 45545-2	498K-1320 SERIES
RW-TY556-244P	CAT.6 24AWG*4PR	EN 45545-2	498K-1320 SERIES
RW-TY556A-264P	CAT.6A 26AWG*4PR	EN 45545-2	498K-1320 SERIES
RW-TY556A-244P	CAT.6A 24AWG*4PR	EN 45545-2	498K-1320 SERIES
RW-TY557-234P	CAT.7 23AWG*4PR	EN 45545-2	498K-1320 SERIES
RW-TY558-234P	CAT.8 23AWG*4PR	EN 45545-2	498K-1320 SERIES

SKU (P/N)	Cable Structure	Railway Verify	Insulation &Sheath
RW-TY101-222C	CanBus #22x2C Ø 6.0 mm	EN 45545-2	498K-1320 SERIES
RW-TY101-242C	CanBus #24x2C Ø 5.5 mm	EN 45545-2	498K-1320 SERIES
RW-TY101-221P+S	CanBus #22x1P+S Ø 6.0 mm	EN 45545-2	498K-1320 SERIES
RW-TY101-222P+S	CanBus #22x2P+S Ø 7.5 mm	EN 45545-2	498K-1320 SERIES
RW-TY101-241P+S	CanBus #24x1P+S Ø 6.0 mm	EN 45545-2	498K-1320 SERIES
