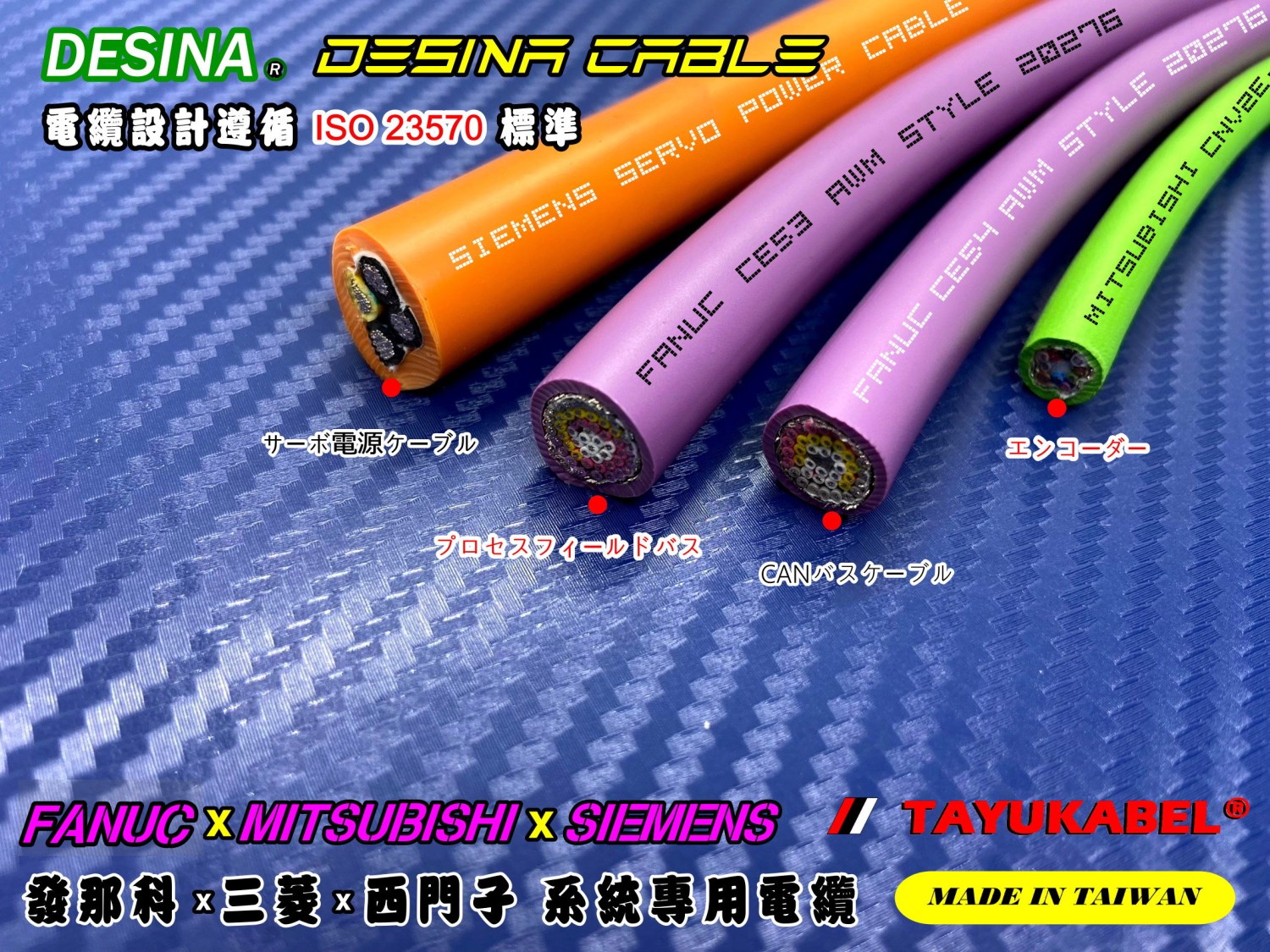

TAYUKABEL® DESINA CABLE
DESINA is an abbreviation for DistributEd and Standardised INstAllation technology for machine tools and manufacturing systems. DESINA is a specification for standardising electric, hydraulic, and pneumatic components and their interconnection on one common platform for CNC-controlled machine tools and manufacturing systems. DESINA specifies the overall installation system together with the required components to achieve a unique distributed control system independent from specific field-bus protocols and capable to operate in severe environments.
ISO 23570 specifies the interconnection of elements in the control system of machine tools and similar large pieces of industrial automation, including cable types, sizes and sheath colors, connector types and contact assignments, and diagnostic functions appropriate to the sensors and actuators.
ISO 23570-3:2009 specifies the interconnection of single-phase or three-phase auxiliary motors with their power source.
ISO 23570 does not address the design or operation of such equipment with respect to safety issues. It is advisable that appropriate safety standards be consulted for such requirements.
DESINA cable according to ISO 23570 Standard， The Sheath Color identify as following:
ORANGE (RAL 2003) : 【servocable, unscreened/screened】
GREEN (RAL 6018) : 【measuring systems, screened 】
VIOLET (RAL 4001) : 【field bus, hybrid cable
YELLOW (RAL 1021) : 【sensor/actuator, unscreened 】
BLACK (RAL 9005) : 【output, unscreened 】
GRAY (RAL 7040) : 【24 V control cable, unscreened】
ORANGE (RAL 2003 ) : 【POWER CORD】servocable, unscreened/screened
CONTROL SYSTEM【 MITSUBISHI 】(CN31L/CN31M)
CONTROL SYSTEM【 FANUC/JAPAN】 (K21/K3)
|
AWM Style 2586
|
Structure and Color code
|
OD & Sheath Color
|
|
16AWGx4C
|
#16 (0.254mm/26) ID:3.10mm
Black*3C(no.1~3) +Y/G*1C
|
OD: 10.50mm
ORANGE(RAL2003)
|
|
14AWGx4C
|
#14 (0.254mm/41) ID:3.50mm
Black*3C(no.1~3) +Y/G*1C
|
OD: 11.50mm
ORANGE(RAL2003)
|
|
12AWGx4C
|
#12 (0.254mm/65) ID:4.10mm
Black*3C(no.1~3) +Y/G*1C
|
OD: 12.50mm
ORANGE(RAL2003)
|
|
10AWGx4C
|
#12 (0.254mm/105) ID:5.10mm
Black*3C(no.1~3) +Y/G*1C
|
OD: 15.00mm
ORANGE(RAL2003)
|
GREEN (RAL 6018) : 【ENCODER】measuring systems, screened
CONTROL SYSTEM【 SIEMENS 】
CONTROL SYSTEM【 MITSUBISHI 】 (CNV2E-7P/CNV2E-4P/CNV2E-HP)
CONTROL SYSTEM【 FANUC/JAPAN】(K16/K17/K22)
|
AWM Style 2517
|
STRUCTURE & ID:
|
OD & Sheath color
|
|
#24*3P+#20*1P
|
#24 (0.08mm/40) ID:1.10mm
#20 (0.08mm/100) ID:1.55mm
|
OD: 7.60mm
GREEN (RAL 6018)
|
|
#24*4P+#20*1P
|
#24 (0.08mm/40) ID:1.10mm
#20 (0.08mm/100) ID:1.55mm
|
OD: 8.50mm
GREEN (RAL 6018)
|

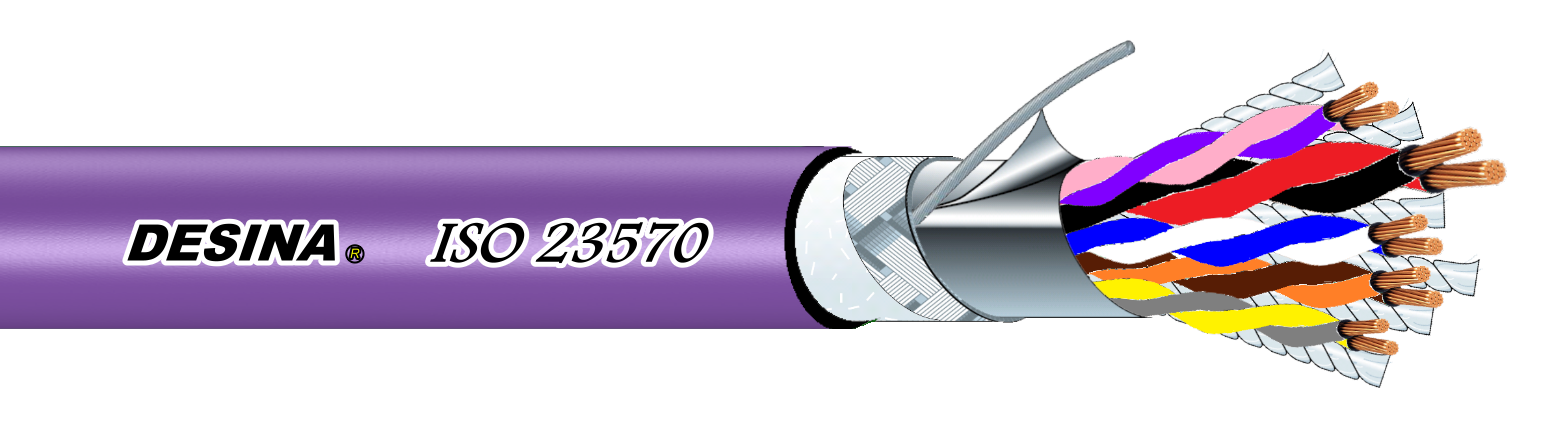

VIOLET (RAL 4001) : 【I/O BUS】field bus, hybrid cable
CONTROL SYSTEM【 MITSUBISHI 】 I/O cable(R301/G013)
CONTROL SYSTEM【 FANUC/JAPAN】I/O(CA65/CE53/CE54/CM65/CM66K12)
.png)
|
AWM Style 20276
|
ID & Structure
|
OD & Sheath Color
|
|
24AWG*4P
|
#24 (0.20mm/7)x4P
ID: 1.10mm
|
OD: 7.00mm
Violet (RAL4001)
|
|
24AWG*5P
|
#24 (0.20mm/7)x5P
ID: 1.10mm
|
OD: 8.00mm
Violet (RAL4001)
|
|
24AWG*6P
|
#24 (0.20mm/7)x6P
ID: 1.10mm
|
OD: 8.50mm
Violet (RAL4001)
|
|
25AWG*40C
|
#25(0.12mm/16)*40C
ID: 1.00mm
|
OD: 10.50mm
Violet (RAL4001)
|
|
25AWG*50C
|
#25(0.12mm/16)*50C
ID: 1.00mm
|
OD: 11.50mm
Violet (RAL4001)
|

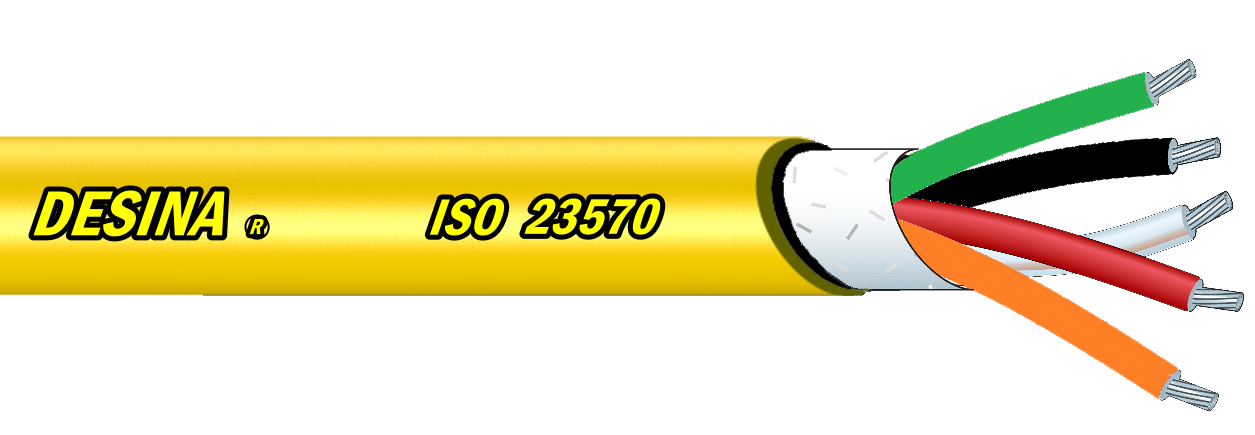

YELLOW (RAL 1021) : 【SENSOR/SWITCH】sensor/actuator, unscreened
CONTROL SYSTEM【 SIEMENS 】Switch sensor。
.png)
|
AWM Style 20549
|
ID & Structure
|
OD & Sheath Color
|
|
22AWG*4C
|
#22 (0.12mm/30)x4C
ID: 1.35mm
|
OD: 7.00mm
YELLOW (RAL1021)
|

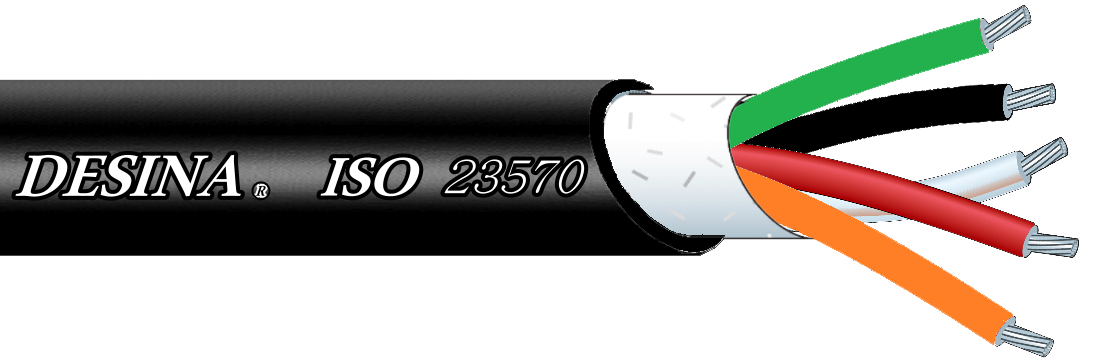

BLACK (RAL 9005) : 【power control】output, unscreened
CONTROL SYSTEM【 FANUC/JAPAN】Low voltage control。
.png)
|
CSA Control Cable
|
ID & Structure
|
OD & Sheath Color
|
|
0.3mm² * 4C
|
0.3mm² (0.18mm/12)x4C
ID: 1.50mm
|
OD: 5.50mm
Black (RAL9005)
|
|
0.5mm² * 4C
|
0.5mm² (0.18mm/20)x4C
ID: 1.80mm
|
OD: 6.50mm
Black (RAL9005)
|
|
0.75mm² * 4C
|
0.75mm² (0.18mm/30)x4C
ID: 2.30mm
|
OD: 7.50mm
Black (RAL9005)
|

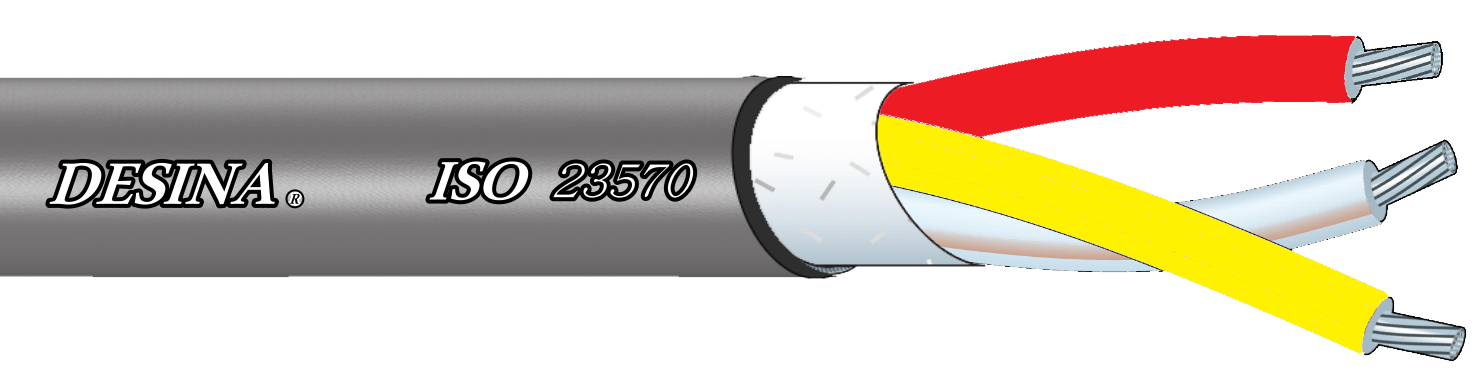

GRAY (RAL 7040) : 【0V/24V control】24 V control cable, unscreened
CONTROL SYSTEM【 MITSUBISHI 】0V,24V Control cable (CX30BI/K7)
CONTROL SYSTEM【 FANUC/JAPAN】0V,24V Control cable (K9)
.png)
|
AWM Style 2464
|
Structure&ID
|
OD&Sheath Color
|
|
24 AWG*2C
|
#24 (0.20mm/7)
ID: 1.10mm
|
4.50mm
Gray (RAL7040)
|
|
22 AWG*2C
|
#22 (0.16mm/17)
ID: 1.30mm
|
5.00mm
Gray (RAL7040)
|
|
20 AWG*2C
|
#20 (0.18mm/21)
ID: 1.55mm
|
5.50mm
Gray (RAL7040)
|
|
18 AWG*2C
|
#20 (0.18mm/34)
ID: 1.80mm
|
6.20mm
Gray (RAL7040)
|
.png)
