10.9 MAP® Marine Feeder Armour Cable

This part of IEC 60092 is applicable to screened and unscreened cables for control and instrumentation circuits on ships and offshore units. The cables have extruded solid insulation with a voltage rating of 600V and are intended for fixed installations.

IEC 60092:2021 specifies the requirements for electrical, mechanical, and particular characteristics of insulating and sheathing materials intended for use in shipboard and fixed and mobile offshore unit power, control, instrumentation, and telecommunication cables.

分享到

商品特色

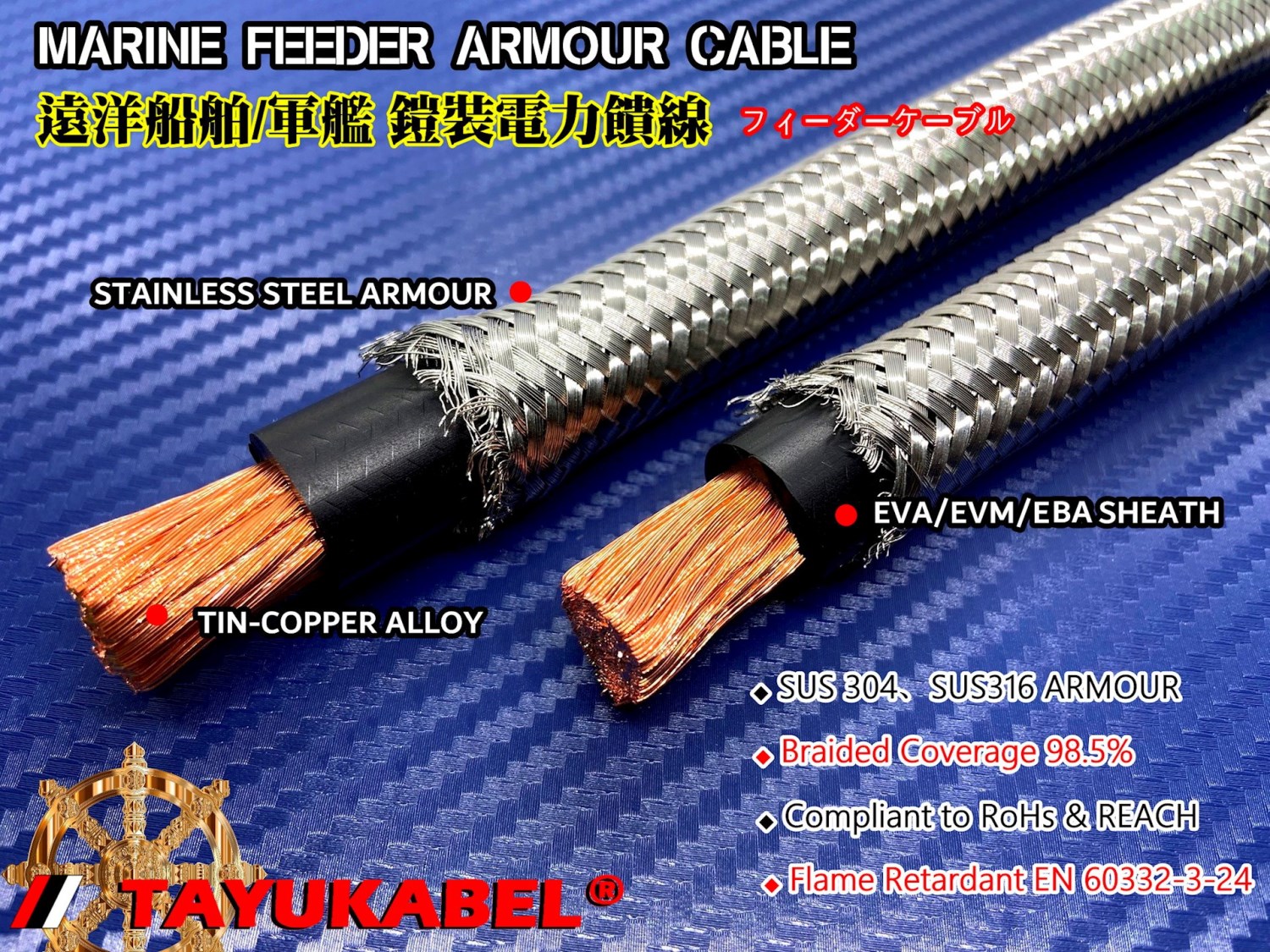

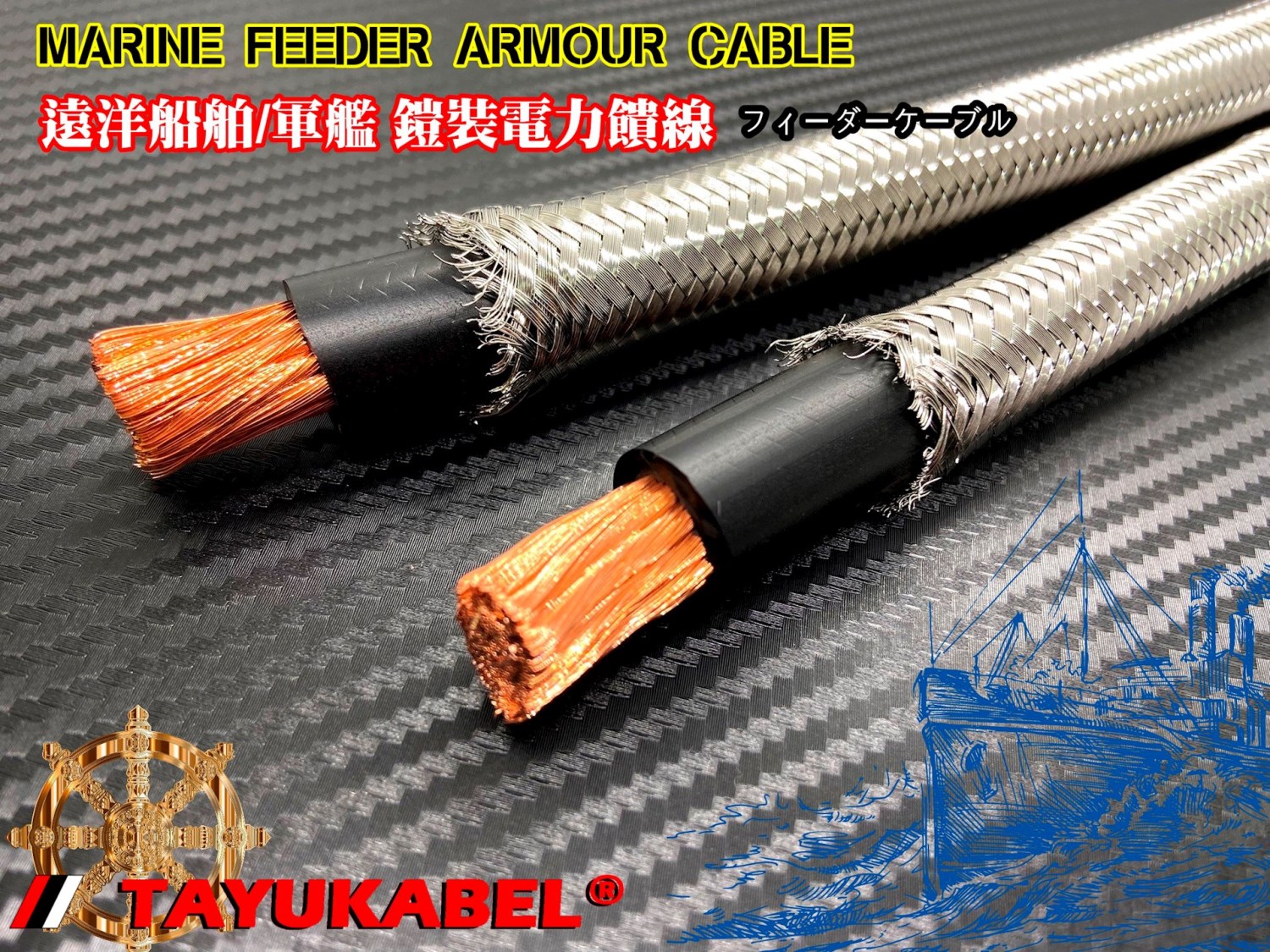

MAP® MARINE FEEDER ARMOUR CABLE

This part of IEC 60092 is applicable to screened and unscreened cables for control and instrumentation circuits on ships and offshore units. The cables have extruded solid insulation with a voltage rating of 600V and are intended for fixed installations.

IEC 60092:2021 specifies the requirements for electrical, mechanical, and particular characteristics of insulating and sheathing materials intended for use in shipboard and fixed and mobile offshore unit power, control, instrumentation, and telecommunication cables.

mm²	NO.X MM	INS THK	OVERALL DIA	ARMOUR	AMPERE(A)
38 mm²	7 / 107 / 0.26mm	1.80 mm	13.50 mm	ST 0.19mm/24/10/10	145 A
50 mm²	19 / 52 / 0.26mm	1.85 mm	15.60 mm	ST 0.19mm/24/10/10	205 A
60 mm²	19 / 62 / 0.26mm	1.85 mm	16.60 mm	ST 0.19mm/24/10/10	237 A
80 mm²	19 / 83 / 0.26mm	2.10 mm	18.20 mm	ST 0.19mm/24/10/12	280 A
100 mm²	19 / 104 / 0.26mm	2.10 mm	19.70 mm	ST 0.19mm/24/10/12	332 A
125 mm²	37/64/0.26mm	2.25 mm	22.3 mm	ST 0.19mm/48/10/10	385 A
150 mm²	37/77/0.26mm	2.30 mm	24.0 mm	ST 0.19mm/48/10/10	412 A
200 mm²	61/62/0.26mm	2.60 mm	27.5 mm	ST 0.19mm/48/10/10	503 A
250 mm²	61/77/0.26mm	2.60 mm	29.9 mm	ST 0.19mm/48/12/12	565 A
325 mm²	61/101/0.26mm	3.20 mm	34.6 mm	ST 0.19mm/48/12/12	630 A
