9.7 MAP® Japan Stlye JIS C 3501 Coaxial Cable

High resolution / HD coaxial cable, used in communications equipment / monitors / portable cameras and so on. Public construction, mass transit system, intelligent home, preservation system for application.

分享到

商品特色

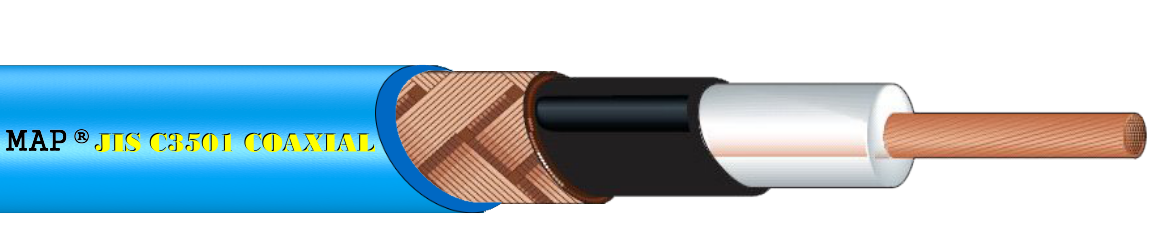

MAP® JIS C 3501 COAXIAL CABLE

PRODUCT DESCRIPTION

* Copper or Copper coated steel conductor

* Transparent PE insulation

* Bare copper braid shield

* Low loss, and high transmission efficiency.

* Available JIS-3501.

Coaxial cable 3C2V/5C2V/5CFB/7C2V (acc to. JIS C 3501 NORM)

MODEL	Braid No.	Cond. Material	NO. OF COND.	INS Material	Braid Material	JACKET Material	COVERAGE	Impedance/Ω
3C-2V	64編	Copper Coated Steel	1/0.643	PE	Aluminum	PVC	60%	75±3
3C-2V	64編	Copper Coated Steel	1/0.643	PE	Bare Copper	PVC	60%	75±3
3C-2V	96編	Copper Coated Steel	1/0.80	Foamed PE	Aluminum	PVC	76%	75±3
3C-2V	96編	Copper Coated Steel	1/0.80	Foamed PE	Bare Copper	PVC	76%	75±3
3C-2V	112編	Copper Coated Steel	1/0.80	Foamed PE	Aluminum	PVC	84%	75±3
3C-2V	96編	Tinned Copper	1/0.80	Foamed PE	Aluminum	PVC	76%	75±3
3C-2V	112編	Tinned Copper	1/0.80	Foamed PE	Aluminum	PVC	84%	75±3
3C-2V	96編	Bare Copper	1/0.80	PE	Bare Copper	PVC	76%	72±2
3C-2V	112編	Bare Copper	1/0.80	PE	Bare Copper	PVC	84%	72±2
5C-2V	64編	Copper Coated Steel	1/0.80	Foamed PE	Aluminum	PVC	50%	75±3
5C-2V	64編	Copper Coated Steel	1/0.80	Foamed PE	Bare Copper	PVC	50%	75±3
5C-FB	128編	Copper Coated Steel	1/1.00	Foamed PE	Aluminum	PVC	75%	75±3
5C-FB	128編	Copper Coated Steel	1/1.00	Foamed PE	Bare Copper	PVC	75%	75±3
5C-FB	168編	Copper Coated Steel	1/1.00	Foamed PE	Aluminum	PVC	88%	75±3
5C-FB	128編	Copper Coated Steel	1/1.00	Foamed PE	Aluminum	PVC	75%	75±3
5C-FB	168編	Copper Coated Steel	1/1.00	Foamed PE	Aluminum	PVC	88%	75±3
5C-2V	160編	Bare Copper	1/0.80	PE	Bare Copper	PVC	85%	72±2
5C-FB	160編	Tinned Copper	1/1.00	Foamed PE	Tinned Copper	PVC	85%	75±3
7C-2V	192編	Copper Coated Steel	1/1.50	Foamed PE	Aluminum	PVC	81%	75±3
7C-2V	192編	Tinned Copper	1/1.50	Foamed PE	Aluminum	PVC	81%	75±3
7C-2V	192編	Tinned Copper	1/1.50	Foamed PE	Tinned Copper	PVC	81%	75±3

E-CATALOG DOWNLOAD
