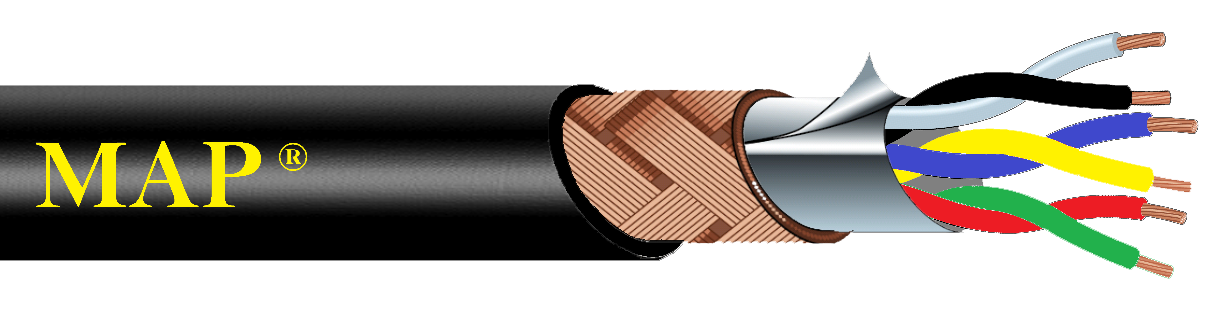

PRODUCT DESCRIPTION
*Tinned or Bare stranded copper conductor
* PVC or PE Insulation
* Double shield & anti-noise (Aluminum Foil + Braid)
* PVC Jacket (Anti-Oil and UV for optional)
* Any colors for customized
* Apply to industry equipment、server system machine、flexible and drag chain
導體截面積
mm²
芯線數
NO.
導體結構
STRUCTURE
芯線外徑
Dia.
隔離方式
Shielded
總完成外徑/mm
OVERALL DIA
0.5 mm²
2C
20 / 0.18
1.7 mm
Foil 100%+Braid
5.7 mm ± 5%
3C
6.2 mm ± 5%
4C
6.6 mm ± 5%
5C
7.2 mm ± 5%
6C
7.9 mm ± 5%
7C
8C
8.5 mm ± 5%
10C
9.5 mm ± 5%
12C
10.5 mm ± 5%
16C
11.5 mm ± 5%
20C
12.8 mm ± 5%
24C
14.0 mm ± 5%
30C
14.5 mm ± 5%
36C
16.0 mm ± 5%
40C
17.0 mm ± 5%
50C
19.0 mm ± 5%
60C
20.5 mm ± 5%
0.75 mm²
30 / 0.18
2.3 mm
7.0 mm ± 5%
7.3 mm ± 5%
8.0 mm ± 5%
8.9 mm ± 5%
9.8 mm ± 5%
10.6 mm ± 5%
12.0 mm ± 5%
12.5 mm ± 5%
15.0 mm ± 5%
16.5 mm ± 5%
18.5 mm ± 5%
20.0 mm ± 5%
21.0 mm ± 5%
23.0 mm ± 5%
25.3 mm ± 5%
1.25 mm²
50 / 0.18
2.5 mm
7.5 mm ± 5%
9.0 mm ± 5%
10.0 mm ± 5%
13.0 mm ± 5%
22.0 mm ± 5%
22.7 mm ± 5%
25.0 mm ± 5%
27.0 mm ± 5%
2.0 mm²
37 / 0.26
3.0 mm
8.6 mm ± 5%
11.2 mm ± 5%
13.2 mm ± 5%
15.5 mm ± 5%
16.3 mm ± 5%
19.5 mm ± 5%
23.5 mm ± 5%
25.5 mm ± 5%
26.5 mm ± 5%
29.0 mm ± 5%
32.0 mm ± 5%
3.5 mm²
66 / 0.26
4.0 mm
17.2 mm ± 5%
28.5 mm ± 5%
5.5 mm²
104 / 0.26
5.0 mm
14.2 mm ± 5%
24.5 mm ± 5%
28.0 mm ± 5%
31.0 mm ± 5%
34.5 mm ± 5%
