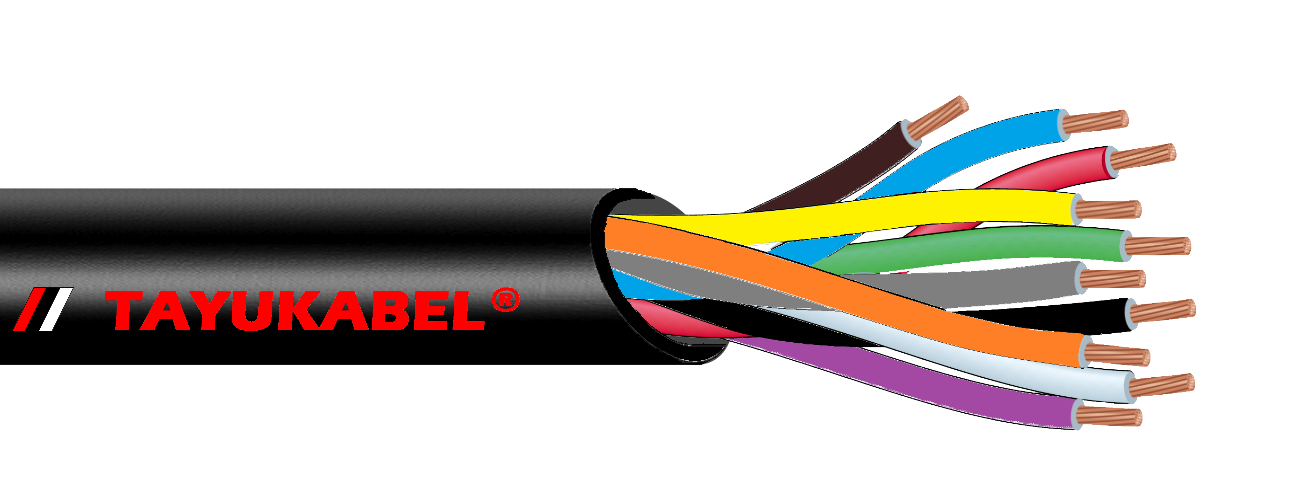

PRODUCT DESCRIPTION
* Tinned or Bare stranded copper conductor
* Insulation with PVC Jacket
* Any colors for customized
* Extending to the shipping cable、Oil-resistant cable and High bending /Flexible cable.
MAP® CONTROL CABLE -0.3 mm²
|
mm²
|
Numb of core
|
Material.
|
inner Dia.
|
OVERALL DIA
|
COLOR
|
|
0.3 mm²
|
2C
|
12 / 0.18
|
1.6 mm
|
4.5 mm ± 5%
|
Black
|
|
0.3 mm²
|
3C
|
12 / 0.18
|
1.6 mm
|
5.0 mm ± 5%
|
Black
|
|
0.3 mm²
|
4C
|
12 / 0.18
|
1.6 mm
|
5.5 mm ± 5%
|
Black
|
|
0.3 mm²
|
5C
|
12 / 0.18
|
1.6 mm
|
6.0 mm ± 5%
|
Black
|
|
0.3 mm²
|
6C
|
12 / 0.18
|
1.6 mm
|
6.7 mm ± 5%
|
Black
|
|
0.3 mm²
|
7C
|
12 / 0.18
|
1.6 mm
|
6.7 mm ± 5%
|
Black
|
|
0.3 mm²
|
8C
|
12 / 0.18
|
1.6 mm
|
7.0 mm ± 5%
|
Black
|
|
0.3 mm²
|
10C
|
12 / 0.18
|
1.6 mm
|
7.5 mm ± 5%
|
Black
|
|
0.3 mm²
|
12C
|
12 / 0.18
|
1.6 mm
|
8.5 mm ± 5%
|
Black
|
|
0.3 mm²
|
16C
|
12 / 0.18
|
1.6 mm
|
9.3 mm ± 5%
|
Black
|
|
0.3 mm²
|
20C
|
12 / 0.18
|
1.6 mm
|
10.0 mm ± 5%
|
Black
|
|
0.3 mm²
|
24C
|
12 / 0.18
|
1.6 mm
|
11.0 mm ± 5%
|
Black
|
|
0.3 mm²
|
30C
|
12 / 0.18
|
1.6 mm
|
12.0 mm ± 5%
|
Black
|
|
0.3 mm²
|
36C
|
12 / 0.18
|
1.6 mm
|
13.0 mm ± 5%
|
Black
|
|
0.3 mm²
|
40C
|
12 / 0.18
|
1.6 mm
|
14.0 mm ± 5%
|
Black
|
|
0.3 mm²
|
50C
|
12 / 0.18
|
1.6 mm
|
15.5 mm ± 5%
|
Black
|
MAP® CONTROL CABLE -0.5 mm²
|
mm²
|
Numb of core
|
Material.
|
inner Dia.
|
OVERALL DIA
|
COLOR
|
|
0.5 mm²
|
2C
|
20 / 0.18
|
1.7 mm
|
5.2 mm ± 5%
|
Black
|
|
0.5 mm²
|
3C
|
20 / 0.18
|
1.7 mm
|
5.8 mm ± 5%
|
Black
|
|
0.5 mm²
|
4C
|
20 / 0.18
|
1.7 mm
|
6.2 mm ± 5%
|
Black
|
|
0.5 mm²
|
5C
|
20 / 0.18
|
1.7 mm
|
6.8 mm ± 5%
|
Black
|
|
0.5 mm²
|
6C
|
20 / 0.18
|
1.7 mm
|
7.2 mm ± 5%
|
Black
|
|
0.5 mm²
|
7C
|
20 / 0.18
|
1.7 mm
|
7.2 mm ± 5%
|
Black
|
|
0.5 mm²
|
8C
|
20 / 0.18
|
1.7 mm
|
8.3 mm ± 5%
|
Black
|
|
0.5 mm²
|
10C
|
20 / 0.18
|
1.7 mm
|
9.0 mm ± 5%
|
Black
|
|
0.5 mm²
|
12C
|
20 / 0.18
|
1.7 mm
|
10.0 mm ± 5%
|
Black
|
|
0.5 mm²
|
14C
|
20 / 0.18
|
1.7 mm
|
11.0 mm ± 5%
|
Black
|
|
0.5 mm²
|
16C
|
20 / 0.18
|
1.7 mm
|
11.0 mm ± 5%
|
Black
|
|
0.5 mm²
|
20C
|
20 / 0.18
|
1.7 mm
|
12.0 mm ± 5%
|
Black
|
|
0.5 mm²
|
24C
|
20 / 0.18
|
1.7 mm
|
13.5 mm ± 5%
|
Black
|
|
0.5 mm²
|
30C
|
20 / 0.18
|
1.7 mm
|
14.0 mm ± 5%
|
Black
|
|
0.5 mm²
|
36C
|
20 / 0.18
|
1.7 mm
|
15.5 mm ± 5%
|
Black
|
|
0.5 mm²
|
40C
|
20 / 0.18
|
1.7 mm
|
16.8 mm ± 5%
|
Black
|
|
0.5 mm²
|
50C
|
20 / 0.18
|
1.7 mm
|
18.0 mm ± 5%
|
Black
|
MAP® CONTROL CABLE -0.75 mm²
|
導體截面積
mm²
|
芯線數目
Numb of core
|
絞合結構
Material.
|
芯線內徑/mm
inner Dia.
|
總完成外徑/mm
OVERALL DIA
|
外被顏色
COLOR
|
|
0.75 mm²
|
2C
|
30 / 0.18
|
2.3 mm
|
6.3 mm ± 5%
|
Black
|
|
0.75 mm²
|
3C
|
30 / 0.18
|
2.3 mm
|
7.0 mm ± 5%
|
Black
|
|
0.75 mm²
|
4C
|
30 / 0.18
|
2.3 mm
|
7.3 mm ± 5%
|
Black
|
|
0.75 mm²
|
5C
|
30 / 0.18
|
2.3 mm
|
8.7 mm ± 5%
|
Black
|
|
0.75 mm²
|
6C
|
30 / 0.18
|
2.3 mm
|
9.5 mm ± 5%
|
Black
|
|
0.75 mm²
|
7C
|
30 / 0.18
|
2.3 mm
|
9.5 mm ± 5%
|
Black
|
|
0.75 mm²
|
8C
|
30 / 0.18
|
2.3 mm
|
10.0 mm ± 5%
|
Black
|
|
0.75 mm²
|
10C
|
30 / 0.18
|
2.3 mm
|
11.5 mm ± 5%
|
Black
|
|
0.75 mm²
|
12C
|
30 / 0.18
|
2.3 mm
|
12.0 mm ± 5%
|
Black
|
|
0.75 mm²
|
14C
|
30 / 0.18
|
2.3 mm
|
13.0 mm ± 5%
|
Black
|
|
0.75 mm²
|
16C
|
30 / 0.18
|
2.3 mm
|
13.2 mm ± 5%
|
Black
|
|
0.75 mm²
|
18C
|
30 / 0.18
|
2.3 mm
|
14.3 mm ± 5%
|
Black
|
|
0.75 mm²
|
20C
|
30 / 0.18
|
2.3 mm
|
15.0 mm ± 5%
|
Black
|
|
0.75 mm²
|
24C
|
30 / 0.18
|
2.3 mm
|
15.5 mm ± 5%
|
Black
|
|
0.75 mm²
|
30C
|
30 / 0.18
|
2.3 mm
|
17.9 mm ± 5%
|
Black
|
|
0.75 mm²
|
36C
|
30 / 0.18
|
2.3 mm
|
19.2 mm ± 5%
|
Black
|
|
0.75 mm²
|
40C
|
30 / 0.18
|
2.3 mm
|
21.5 mm ± 5%
|
Black
|
|
0.75 mm²
|
50C
|
30 / 0.18
|
2.3 mm
|
22.6 mm ± 5%
|
Black
|
MAP® CONTROL CABLE -1.25 mm²
|
導體截面積
mm²
|
芯線數目
Numb of core
|
絞合結構
Material.
|
芯線內徑/mm
inner Dia.
|
總完成外徑/mm
OVERALL DIA
|
外被顏色
COLOR
|
|
1.25 mm²
|
2C
|
50 / 0.18
|
2.5 mm
|
6.9 mm ± 5%
|
Black
|
|
1.25 mm²
|
3C
|
50 / 0.18
|
2.5 mm
|
7.4 mm ± 5%
|
Black
|
|
1.25 mm²
|
4C
|
50 / 0.18
|
2.5 mm
|
8.3 mm ± 5%
|
Black
|
|
1.25 mm²
|
5C
|
50 / 0.18
|
2.5 mm
|
9.4 mm ± 5%
|
Black
|
|
1.25 mm²
|
6C
|
50 / 0.18
|
2.5 mm
|
10.0 mm ± 5%
|
Black
|
|
1.25 mm²
|
7C
|
50 / 0.18
|
2.5 mm
|
10.0 mm ± 5%
|
Black
|
|
1.25 mm²
|
8C
|
50 / 0.18
|
2.5 mm
|
11.0 mm ± 5%
|
Black
|
|
1.25 mm²
|
10C
|
50 / 0.18
|
2.5 mm
|
12.0 mm ± 5%
|
Black
|
|
1.25 mm²
|
12C
|
50 / 0.18
|
2.5 mm
|
12.5 mm ± 5%
|
Black
|
|
1.25 mm²
|
16C
|
50 / 0.18
|
2.5 mm
|
14.3 mm ± 5%
|
Black
|
|
1.25 mm²
|
20C
|
50 / 0.18
|
2.5 mm
|
16.0 mm ± 5%
|
Black
|
|
1.25 mm²
|
24C
|
50 / 0.18
|
2.5 mm
|
17.8 mm ± 5%
|
Black
|
|
1.25 mm²
|
30C
|
50 / 0.18
|
2.5 mm
|
18.5 mm ± 5%
|
Black
|
|
1.25 mm²
|
36C
|
50 / 0.18
|
2.5 mm
|
21.0 mm ± 5%
|
Black
|
|
1.25 mm²
|
40C
|
50 / 0.18
|
2.5 mm
|
23.0 mm ± 5%
|
Black
|
|
1.25 mm²
|
50C
|
50 / 0.18
|
2.5 mm
|
24.5 mm ± 5%
|
Black
|
MAP® CONTROL CABLE -2.0 mm²
|
導體截面積
mm²
|
芯線數目
Numb of core
|
絞合結構
Material.
|
芯線內徑/mm
inner Dia.
|
總完成外徑/mm
OVERALL DIA
|
外被顏色
COLOR
|
|
2.0 mm²
|
2C
|
37 / 0.26
|
3.0 mm
|
8.2 mm ± 5%
|
Black
|
|
2.0 mm²
|
3C
|
37 / 0.26
|
3.0 mm
|
9.0 mm ± 5%
|
Black
|
|
2.0 mm²
|
4C
|
37 / 0.26
|
3.0 mm
|
9.8 mm ± 5%
|
Black
|
|
2.0 mm²
|
5C
|
37 / 0.26
|
3.0 mm
|
10.8 mm ± 5%
|
Black
|
|
2.0 mm²
|
6C
|
37 / 0.26
|
3.0 mm
|
11.7 mm ± 5%
|
Black
|
|
2.0 mm²
|
7C
|
37 / 0.26
|
3.0 mm
|
11.7 mm ± 5%
|
Black
|
|
2.0 mm²
|
8C
|
37 / 0.26
|
3.0 mm
|
13.0 mm ± 5%
|
Black
|
|
2.0 mm²
|
9C
|
37 / 0.26
|
3.0 mm
|
15.0 mm ± 5%
|
Black
|
|
2.0 mm²
|
10C
|
37 / 0.26
|
3.0 mm
|
15.0 mm ± 5%
|
Black
|
|
2.0 mm²
|
12C
|
37 / 0.26
|
3.0 mm
|
16.0 mm ± 5%
|
Black
|
|
2.0 mm²
|
16C
|
37 / 0.26
|
3.0 mm
|
16.3 mm ± 5%
|
Black
|
|
2.0 mm²
|
19C
|
37 / 0.26
|
3.0 mm
|
18.0 mm ± 5%
|
Black
|
|
2.0 mm²
|
20C
|
37 / 0.26
|
3.0 mm
|
19.0 mm ± 5%
|
Black
|
|
2.0 mm²
|
24C
|
37 / 0.26
|
3.0 mm
|
22.0 mm ± 5%
|
Black
|
|
2.0 mm²
|
30C
|
37 / 0.26
|
3.0 mm
|
23.0 mm ± 5%
|
Black
|
|
2.0 mm²
|
36C
|
37 / 0.26
|
3.0 mm
|
25.0 mm ± 5%
|
Black
|
|
2.0 mm²
|
40C
|
37 / 0.26
|
3.0 mm
|
27.5 mm ± 5%
|
Black
|
|
2.0 mm²
|
50C
|
37 / 0.26
|
3.0 mm
|
29.5 mm ± 5%
|
Black
|
MAP® CONTROL CABLE -3.5 mm²
|
導體截面積
mm²
|
芯線數目
Numb of core
|
絞合結構
Material.
|
芯線內徑/mm
inner Dia.
|
總完成外徑/mm
OVERALL DIA
|
外被顏色
COLOR
|
|
3.5 mm²
|
2C
|
66 / 0.26
|
4.0 mm
|
10.8 mm ± 5%
|
Black
|
|
3.5 mm²
|
3C
|
66 / 0.26
|
4.0 mm
|
12.0 mm ± 5%
|
Black
|
|
3.5 mm²
|
4C
|
66 / 0.26
|
4.0 mm
|
12.8 mm ± 5%
|
Black
|
|
3.5 mm²
|
5C
|
66 / 0.26
|
4.0 mm
|
14.0 mm ± 5%
|
Black
|
|
3.5 mm²
|
6C
|
66 / 0.26
|
4.0 mm
|
15.0 mm ± 5%
|
Black
|
|
3.5 mm²
|
7C
|
66 / 0.26
|
4.0 mm
|
15.0 mm ± 5%
|
Black
|
|
3.5 mm²
|
8C
|
66 / 0.26
|
4.0 mm
|
16.5 mm ± 5%
|
Black
|
|
3.5 mm²
|
10C
|
66 / 0.26
|
4.0 mm
|
18.0 mm ± 5%
|
Black
|
|
3.5 mm²
|
12C
|
66 / 0.26
|
4.0 mm
|
20.0 mm ± 5%
|
Black
|
|
3.5 mm²
|
14C
|
66 / 0.26
|
4.0 mm
|
21.0 mm ± 5%
|
Black
|
|
3.5 mm²
|
16C
|
66 / 0.26
|
4.0 mm
|
22.5 mm ± 5%
|
Black
|
MAP® CONTROL CABLE -5.5 mm²
|
導體截面積
mm²
|
芯線數目
Numb of core
|
絞合結構
Material.
|
芯線內徑/mm
inner Dia.
|
總完成外徑/mm
OVERALL DIA
|
外被顏色
COLOR
|
|
5.5 mm²
|
2C
|
104 / 0.26
|
5.0 mm
|
12.5 mm ± 5%
|
Black
|
|
5.5 mm²
|
3C
|
104 / 0.26
|
5.0 mm
|
13.8 mm ± 5%
|
Black
|
|
5.5 mm²
|
4C
|
104 / 0.26
|
5.0 mm
|
15.5 mm ± 5%
|
Black
|
|
5.5 mm²
|
5C
|
104 / 0.26
|
5.0 mm
|
16.5 mm ± 5%
|
Black
|
|
5.5 mm²
|
6C
|
104 / 0.26
|
5.0 mm
|
19.0 mm ± 5%
|
Black
|
|
5.5 mm²
|
7C
|
104 / 0.26
|
5.0 mm
|
19.0 mm ± 5%
|
Black
|
|
5.5 mm²
|
8C
|
104 / 0.26
|
5.0 mm
|
21.0 mm ± 5%
|
Black
|
MAP® CONTROL CABLE -8.0 mm²
|
導體截面積
mm²
|
芯線數目
Numb of core
|
絞合結構
Material.
|
芯線內徑/mm
inner Dia.
|
總完成外徑/mm
OVERALL DIA
|
外被顏色
COLOR
|
|
8.0 mm²
|
2C
|
148 / 0.26
|
6.0 mm
|
14.5 mm ± 5%
|
Black
|
|
8.0 mm²
|
3C
|
148 / 0.26
|
6.0 mm
|
16.0 mm ± 5%
|
Black
|
|
8.0 mm²
|
4C
|
148 / 0.26
|
6.0 mm
|
18.0 mm ± 5%
|
Black
|
|
8.0 mm²
|
5C
|
148 / 0.26
|
6.0 mm
|
20.0 mm ± 5%
|
Black
|
MAP® CONTROL CABLE -14.0 mm²
|
導體截面積
mm²
|
芯線數目
Numb of core
|
絞合結構
Material.
|
芯線內徑/mm
inner Dia.
|
總完成外徑/mm
OVERALL DIA
|
外被顏色
COLOR
|
|
14.0 mm²
|
2C
|
259 / 0.26
|
8.0 mm
|
17.5 mm ± 5%
|
Black
|
|
14.0 mm²
|
3C
|
259 / 0.26
|
8.0 mm
|
20.0 mm ± 5%
|
Black
|
|
14.0 mm²
|
4C
|
259 / 0.26
|
8.0 mm
|
22.0 mm ± 5%
|
Black
|
