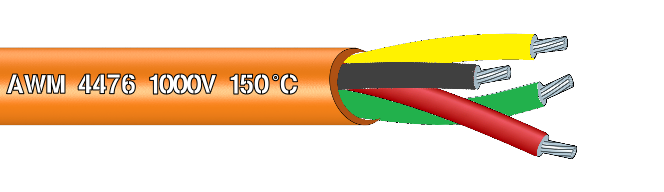

8.3 UL4476 Braidless Silicone EV Cable

AWM 4476 EV cable provides a high power charging function. The cable makes it possible for drivers to charge their electric vehicles within a few minutes and to travel significantly longer distances. AWM 4476 EV cable has a flexible、high voltage against、heating trait. Rated Temperature: 150℃ or 200℃.

AWG	Material	No. of Core	STRUCTURE	Inner Dia	THICKNESS	OVERALL DIA
18AWG	Tinned Copper	2C	0.254mm / 16	6.9 mm	1.15mm	9.2 mm
Tinned Copper	3C	0.254mm / 16	7.4 mm	1.15mm	9.7 mm
Tinned Copper	4C	0.254mm / 16	8.3 mm	1.15mm	10.6 mm
16AWG	Tinned Copper	2C	0.254mm / 26	7.5 mm	1.15mm	9.8 mm
Tinned Copper	3C	0.254mm / 26	8.1 mm	1.15mm	10.4mm
Tinned Copper	4C	0.254mm / 26	9.1 mm	1.15mm	11.4 mm
14AWG	Tinned Copper	2C	0.254mm / 41	8.4 mm	1.15mm	10.7 mm
Tinned Copper	3C	0.254mm / 41	9.1 mm	1.15mm	11.4 mm
Tinned Copper	4C	0.254mm / 41	10.2 mm	1.15mm	12.5 mm
12AWG	Tinned Copper	2C	0.254mm / 65	9.3 mm	1.15mm	11.6 mm
Tinned Copper	3C	0.254mm / 65	10.0 mm	1.15mm	12.3 mm
Tinned Copper	4C	0.254mm / 65	10.7 mm	1.15mm	13.0 mm
10AWG	Tinned Copper	2C	0.254mm / 105	10.6 mm	1.15mm	12.9 mm
Tinned Copper	3C	0.254mm / 105	11.5 mm	1.15mm	13.8 mm
Tinned Copper	4C	0.254mm / 105	12.2 mm	1.15mm	14.5 mm
8AWG	Tinned Copper	2C	0.254mm / 161	6.3 mm	1.15mm	13.0 mm
Tinned Copper	3C	0.254mm / 161	6.3 mm	1.15mm	15.8 mm
Tinned Copper	4C	0.254mm / 161	6.3 mm	1.15mm	17.2 mm

AWG

Material

No. of Core

STRUCTURE

Inner Dia

THICKNESS

OVERALL DIA

18AWG

Tinned Copper

0.254mm / 16

6.9 mm

1.15mm

9.2 mm

Tinned Copper

0.254mm / 16

7.4 mm

1.15mm

9.7 mm

Tinned Copper

0.254mm / 16

8.3 mm

1.15mm

10.6 mm

16AWG

Tinned Copper

0.254mm / 26

7.5 mm

1.15mm

9.8 mm

Tinned Copper

0.254mm / 26

8.1 mm

1.15mm

10.4mm

Tinned Copper

0.254mm / 26

9.1 mm

1.15mm

11.4 mm

14AWG

Tinned Copper

0.254mm / 41

8.4 mm

1.15mm

10.7 mm

Tinned Copper

0.254mm / 41

9.1 mm

1.15mm

11.4 mm

Tinned Copper

0.254mm / 41

10.2 mm

1.15mm

12.5 mm

12AWG

Tinned Copper

0.254mm / 65

9.3 mm

1.15mm

11.6 mm

Tinned Copper

0.254mm / 65

10.0 mm

1.15mm

12.3 mm

Tinned Copper

0.254mm / 65

10.7 mm

1.15mm

13.0 mm

10AWG

Tinned Copper

0.254mm / 105

10.6 mm

1.15mm

12.9 mm

Tinned Copper

0.254mm / 105

11.5 mm

1.15mm

13.8 mm

Tinned Copper

0.254mm / 105

12.2 mm

1.15mm

14.5 mm

8AWG

Tinned Copper

0.254mm / 161

6.3 mm

1.15mm

13.0 mm

Tinned Copper

0.254mm / 161

6.3 mm

1.15mm

15.8 mm

Tinned Copper

0.254mm / 161

6.3 mm

1.15mm

17.2 mm
