PRODUCT DESCRIPTION
* Bare stranded copper conductor
* PVC Insulation
* Rated temperature 60°C 75°C 105°C
* Rated voltage:300V
* Water-proof PVC Jacket
* Oil Resistance.Abrasion.
* SJTO oil-res trait, SJTO for outdoor use

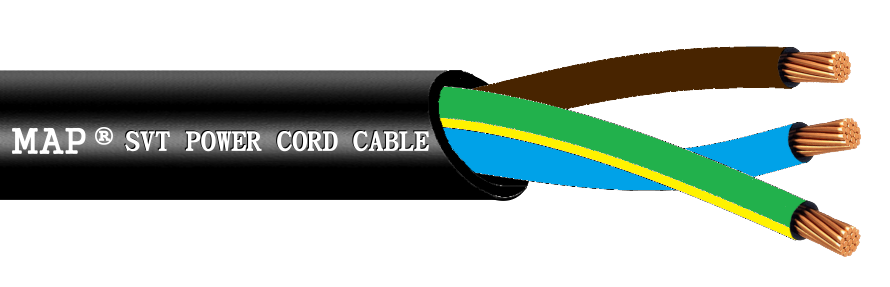

MAP® 美規SVT POWER CABLE
|
MODEL
AWG
|
導體結構
NO.X MM
|
絕緣厚度
INS THK
|
披覆厚度
JACKET THK
|
銅網隔離
BRAID SHI
|
完成外徑
OVERALL DIA
|
|
18AWG x 2C
|
41/0.16
|
0.38 mm
|
0.76 mm
|
-----
|
6.0 mm ± 0.1
|
|
18AWG x 3C
|
41/0.16
|
0.38 mm
|
0.76 mm
|
-----
|
6.4 mm ± 0.1
|
|
18AWG x 3C
|
41/0.16
|
0.38 mm
|
0.76 mm
|
16/9/0.127
|
7.2 mm ± 0.1
|
