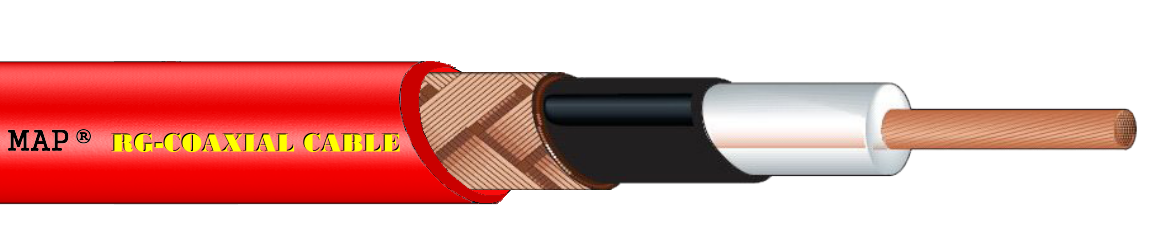

產品說明 PRODUCT DESCRIPTION UL1354 , 1365 , 1478 , 1792 , CL2
*導體為裸銅線或銅包鋼 Copper or Copper coated steel conductor
*聚乙烯或發泡聚乙烯絕緣 PE or Foamed PE insulation
*裸銅編織網隔離Bare copper braid shield
*低損耗,傳輸效率高 Low loss and high transmission effciency.
* 符合UL規範 Available UL.
|
型號
MODEL
|
導體結構
NO. OF COND.
|
導體材質
Cond. Material
|
絕緣厚度
INS THK.
|
絕緣材質
INS Material
|
編織材質
Braid Material
|
披覆材質
JACKET Material
|
完成外徑
OVERALL DIA
|
特性阻抗
Impedance/Ω
|
|
RG-6/U
|
1/1.02
|
Bare Copper
|
4.57 mm
|
Foamed PE
|
Tinned Copper
|
PVC
|
6.9 mm
|
75
|
|
RG-8/U
|
7/0.9
|
Bare Copper
|
7.24 mm
|
Foamed PE
|
Bare Copper
|
PVC
|
10.3 mm
|
52
|
|
RG-8/U
|
7/0.724
|
Bare Copper
|
7.24 mm
|
PE
|
Bare Copper
|
PVC
|
10.3 mm
|
52
|
|
RG-8/X
|
19/0.287
|
Bare Copper
|
3.94 mm
|
Foamed PE
|
Bare Copper
|
PVC
|
6.15 mm
|
52
|
|
RG-11/U
|
1/1.63
|
Bare Copper
|
7.24 mm
|
Foamed PE
|
Tinned Copper
|
PVC
|
10.3 mm
|
75
|
|
RG-11/U
|
7/0.404
|
Tinned Copper
|
7.24 mm
|
PE
|
Bare Copper
|
PVC
|
10.3 mm
|
75
|
|
RG-14/U
|
1/2.591
|
Bare Copper
|
9.4 mm
|
PE
|
BCBC
|
PVC
|
13.8 mm
|
52
|
|
RG-55A/U
|
1/0.889
|
Sliver Copper
|
2.9 mm
|
PE
|
SCSC
|
NC-PVC
|
5.4 mm
|
50
|
|
TWINAXIAL
|
7/0.32×2
|
Tinned /Bare Copper
|
5.99 mm
|
PE
|
Tinned Copper
|
PVC
|
8.4 mm
|
100
|
|
RG-58/U
|
1/0.8
|
Bare Copper
|
2.9 mm
|
PE
|
Tinned Copper
|
PVC
|
5.0 mm
|
50
|
|
RG-58A/U
|
19/0.203
|
Tinned Copper
|
2.9 mm
|
Foamed PE
|
Tinned Copper
|
PVC
|
5.03 mm
|
50
|
|
RG-58A/U
|
19/0.18
|
Tinned Copper
|
2.95 mm
|
PE
|
Tinned Copper
|
PVC
|
4.95 mm
|
50
|
|
RG-58C/U
|
19/0.18
|
Tinned Copper
|
2.95 mm
|
PE
|
Tinned Copper
|
NC-PVC
|
4.95 mm
|
50
|
|
Thin Ethernet
|
19/0.203
|
Tinned Copper
|
2.59 mm
|
Foamed PE
|
Tinned Copper
|
NC-PVC
|
4.62 mm
|
50
|
|
RG-59/U
|
7/0.254
|
Bare Copper
|
3.71 mm
|
Foamed PE
|
Bare Copper
|
PVC
|
6.15 mm
|
75
|
|
RG-59/U
|
1/0.81
|
Bare Copper
|
3.71 mm
|
Foamed PE
|
Bare Copper
|
PVC
|
6.15 mm
|
75
|
|
RG-59/U DUAL
|
1/0.643
|
Copper Coated Steel
|
3.71 mm
|
PE
|
Bare Copper
|
PVC
|
6.15 mm×12.4 mm
|
75
|
|
RG-59/U
|
1/0.643
|
Copper Coated Steel
|
3.71 mm
|
PE
|
Bare Copper
|
PVC
|
6.15 mm
|
73
|
|
RG-59A/U
|
17/0.16
|
Bare Copper
|
3.71 mm
|
PE
|
Bare Copper
|
NC-PVC
|
6.15 mm
|
73
|
|
RG-59B/U
|
1/0.584
|
Copper Coated Steel
|
3.71 mm
|
PE
|
Bare Copper
|
NC-PVC
|
6.15 mm
|
75
|
|
RG-62/U
|
1/0.643
|
Copper Coated Steel
|
3.71 mm
|
SSPE
|
Bare Copper
|
PVC
|
6.15 mm
|
93
|
|
RG-62A/U
|
1/0.643
|
Copper Coated Steel
|
3.71 mm
|
SSPE
|
Bare Copper
|
NC-PVC
|
6.15 mm
|
93
|
|
RG-62B/U
|
7/0.203
|
Copper Coated Steel
|
3.71 mm
|
SSPE
|
Bare Copper
|
NC-PVC
|
6.15 mm
|
93
|
|
RG-71B/U
|
1/0.643
|
Copper Coated Steel
|
3.71 mm
|
SSPE
|
TCTC
|
PE
|
6.22 mm
|
93
|
|
RG-174/U
|
7/0.16
|
Copper Coated Steel
|
1.52 mm
|
PE
|
Tinned Copper
|
PVC
|
2.8 mm
|
50
|
|
RG-174A/U
|
7/0.16
|
Copper Coated Steel
|
1.52 mm
|
PE
|
Tinned Copper
|
NC-PVC
|
2.8 mm
|
50
|
|
RG-212/U
|
1/1.412
|
Sliver Copper
|
4.7 mm
|
PE
|
SCSC
|
NC-PVC
|
8.4 mm
|
50
|
|
RG-213/U
|
7/0.752
|
Bare Copper
|
7.24 mm
|
PE
|
Bare Copper
|
NC-PVC
|
10.3 mm
|
50
|
|
RG-214/U
|
7/0.752
|
Sliver Copper
|
7.24 mm
|
PE
|
SCSC
|
NC-PVC
|
10.8 mm
|
50
|
|
RG-216/U
|
7/0.404
|
Tinned Copper
|
7.24 mm
|
PE
|
BCBC
|
PVC
|
10.8 mm
|
75
|
|
RG-223/U
|
1/0.889
|
Sliver Copper
|
2.9 mm
|
PE
|
SCSC
|
NC-PVC
|
5.3 mm
|
50
|
