6.7 UL20233. UL20549. UL20197 TPU/PUR CABLE

6.7 UL20233. UL20549. UL20197 TPU/PUR CABLE

分享到

商品特色

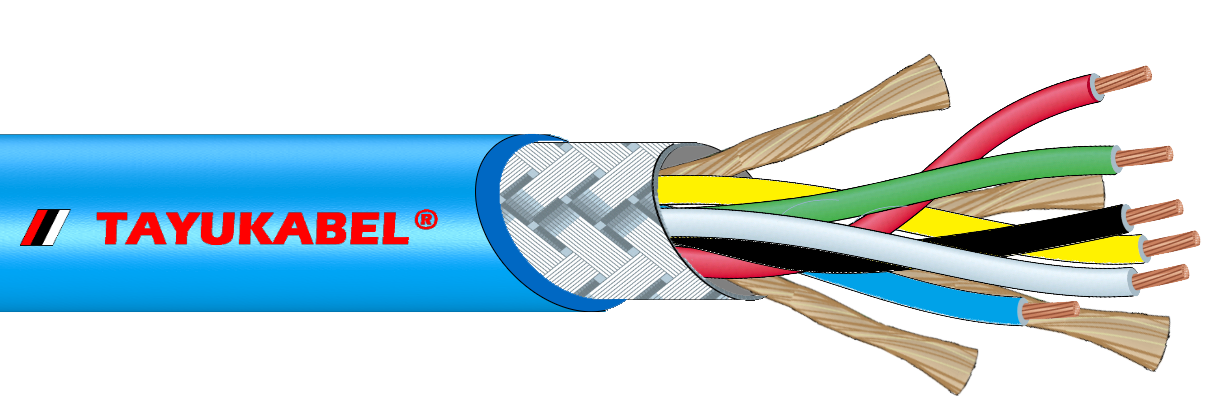

UL認證 TPU / PUR CABLE 聚氨酯電纜線 (+編織隔離)

UL20233. 80℃, 300 V ,TPU SHEATH (PUR JACKET)

STYLE	CORE	AWG	COND	INS THICKNESS	INS DIA	Braided	JAC THICKNESS	OVERALL DIA
UL20233	2C	30AWG	7/0.100	0.23 mm	0.80 mm	Coverage 70%	0.76 mm	3.6 mm ± 0.25
UL20233	3C	30AWG	7/0.100	0.23 mm	0.80 mm	Coverage 70%	0.76 mm	5.5 mm ± 0.25
UL20233	4C	30AWG	7/0.100	0.23 mm	0.80 mm	Coverage 70%	0.76 mm	5.7 mm ± 0.25
UL20233	5C	30AWG	7/0.100	0.23 mm	0.80 mm	Coverage 70%	0.76 mm	6.0 mm ± 0.25
UL20233	2C	28AWG	7/0.127	0.23 mm	0.90 mm	Coverage 70%	0.76 mm	3.9 mm ± 0.25
UL20233	3C	28AWG	7/0.127	0.23 mm	0.90 mm	Coverage 70%	0.76 mm	5.7 mm ± 0.25
UL20233	4C	28AWG	7/0.127	0.23 mm	0.90 mm	Coverage 70%	0.76 mm	5.9 mm ± 0.25
UL20233	5C	28AWG	7/0.127	0.23 mm	0.90 mm	Coverage 70%	0.76 mm	6.3 mm ± 0.25
UL20233	2C	26AWG	7/0.16	0.23 mm	1.00 mm	Coverage 70%	0.76 mm	4.0 mm ± 0.25
UL20233	3C	26AWG	7/0.16	0.23 mm	1.00 mm	Coverage 70%	0.76 mm	5.9 mm ± 0.25
UL20233	4C	26AWG	7/0.16	0.23 mm	1.00 mm	Coverage 70%	0.76 mm	6.2 mm ± 0.25
UL20233	5C	26AWG	7/0.16	0.23 mm	1.00 mm	Coverage 70%	0.76 mm	6.4 mm ± 0.25

UL認證 TPU / PUR CABLE 聚氨酯電纜線

UL20549. 80℃, 300 V ,TPU SHEATH (PUR JACKET)

STYLE	CORE	AWG	COND	INS THICKNESS	INS DIA	JAC THICKNESS	OVERALL DIA
UL20549	2C	30AWG	7/0.100	0.23 mm	0.80 mm	0.60 mm	3.0 mm ± 0.25
UL20549	3C	30AWG	7/0.100	0.23 mm	0.80 mm	0.60 mm	3.2 mm ± 0.25
UL20549	4C	30AWG	7/0.100	0.23 mm	0.80 mm	0.80 mm	3.8 mm ± 0.25
UL20549	5C	30AWG	7/0.100	0.23 mm	0.80 mm	0.80 mm	4.3 mm ± 0.25
UL20549	2C	28AWG	7/0.127	0.23 mm	0.90 mm	0.60 mm	3.2 mm ± 0.25
UL20549	3C	28AWG	7/0.127	0.23 mm	0.90 mm	0.60 mm	3.6 mm ± 0.25
UL20549	4C	28AWG	7/0.127	0.23 mm	0.90 mm	0.80 mm	4.3 mm ± 0.25
UL20549	5C	28AWG	7/0.127	0.23 mm	0.90 mm	0.80 mm	4.7 mm ± 0.25
UL20549	2C	26AWG	7/0.16	0.23 mm	1.00 mm	0.60 mm	3.5 mm ± 0.25
UL20549	3C	26AWG	7/0.16	0.23 mm	1.00 mm	0.60 mm	3.9 mm ± 0.25
UL20549	4C	26AWG	7/0.16	0.23 mm	1.00 mm	0.80 mm	4.6 mm ± 0.25
UL20549	5C	26AWG	7/0.16	0.23 mm	1.00 mm	0.80 mm	5.0 mm ± 0.25

UL認證 TPU / PUR CABLE 聚氨酯電纜線

UL20197. 60℃, 30 V ,TPU SHEATH (PUR JACKET)

STYLE	CORE	AWG	COND	INS THICKNESS	INS DIA	JAC THICKNESS	OVERALL DIA
UL20197	2C	30AWG	7/0.100	0.23 mm	0.80 mm	0.80 mm	3.4 mm ± 0.25
UL20197	3C	30AWG	7/0.100	0.23 mm	0.80 mm	0.80 mm	3.7 mm ± 0.25
UL20197	4C	30AWG	7/0.100	0.23 mm	0.80 mm	0.80 mm	4.3 mm ± 0.25
UL20197	5C	30AWG	7/0.100	0.23 mm	0.80 mm	0.80 mm	4.5 mm ± 0.25
UL20197	2C	28AWG	7/0.127	0.23 mm	0.90 mm	0.80 mm	3.6 mm ± 0.25
UL20197	3C	28AWG	7/0.127	0.23 mm	0.90 mm	0.80 mm	4.0 mm ± 0.25
UL20197	4C	28AWG	7/0.127	0.23 mm	0.90 mm	0.80 mm	4.6 mm ± 0.25
UL20197	5C	28AWG	7/0.127	0.23 mm	0.90 mm	0.80 mm	4.9 mm ± 0.25
UL20197	2C	26AWG	7/0.16	0.23 mm	1.00 mm	0.80 mm	3.9 mm ± 0.25
UL20197	3C	26AWG	7/0.16	0.23 mm	1.00 mm	0.80 mm	4.2 mm ± 0.25
UL20197	4C	26AWG	7/0.16	0.23 mm	1.00 mm	0.80 mm	4.8 mm ± 0.25
UL20197	5C	26AWG	7/0.16	0.23 mm	1.00 mm	0.80 mm	5.2 mm ± 0.25
