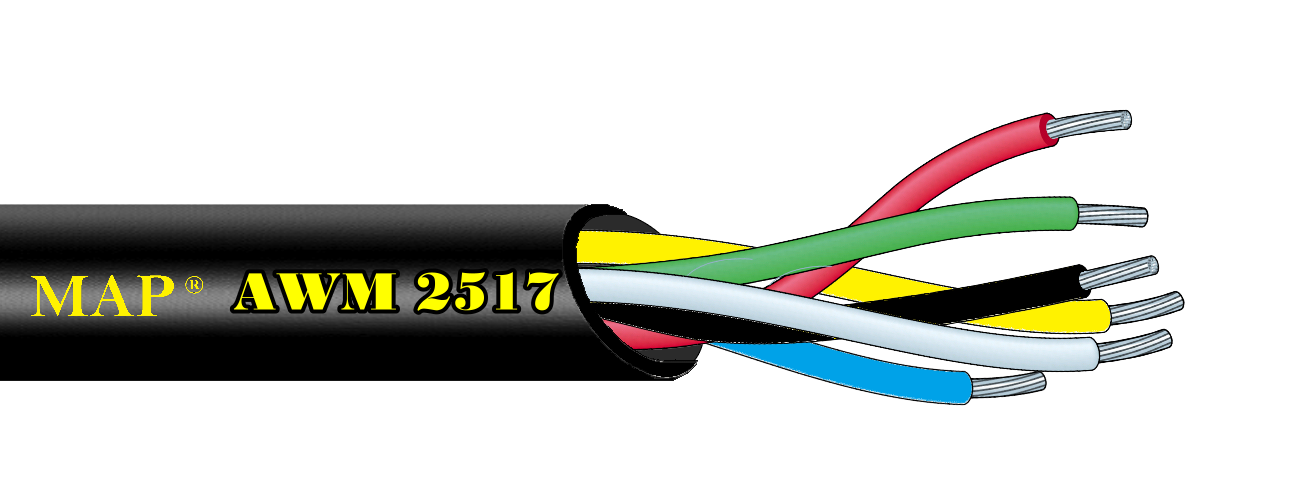

6.5 UL2517 Highly Bending/Oil resistance/Flexible/Heating resistance

Suitable for the drag chain system / automation equipment / mechanical arm.used in high-speed and banding environment.

分享到

產品說明 PRODUCT DESCRIPTION

*採用0.08mm錫銅或裸銅絞合導體 Use 0.08mm-Tinned or bare stranded copper conductor

*高抗扭.耐繞曲絕緣材料 Flexible PVC Insulation/Jacket

*額定溫度105°C Rated temperature 105°C

*額定電壓300伏特 Rated voltage:300V

*信賴性測試達耐曲折1000萬次 Pass 10 million banding times.

*耐油.耐磨性.Oil-Resistance. Abrasion.

*符合UL 規範 Available UL Verify

MODEL UL2517	導體結構 NO.X MM	芯線數 NO.	芯線外徑 INNER DIA	完成外徑 OVERALL DIA	導體電阻 CON RESISTANCE
25AWG	36/0.08	3P	1.1 mm	6.6 mm ± 5%	111.0 Ω/KM max
25AWG	36/0.08	6P	1.1 mm	8.3 mm ± 5%	111.0 Ω/KM max
25AWG	36/0.08	10P	1.1 mm	10.3 mm ± 5%	111.0 Ω/KM max
25AWG	36/0.08	25C	1.1 mm	10.0 mm ± 5%	111.0 Ω/KM max
25AWG	36/0.08	40C	1.1 mm	11.0 mm ± 5%	111.0 Ω/KM max
25AWG	36/0.08	50C	1.1 mm	13.0 mm ± 5%	111.0 Ω/KM max

MODEL UL2517	導體結構 NO.X MM	芯線數 NO. OF CORE	芯線外徑 INNER DIA	完成外徑 OVERALL DIA	導體電阻 CON RESISTANCE
24AWG	40/0.08	2C	1.1 mm	4.5 mm ± 5%	99.9 Ω/KM max
24AWG	40/0.08	4C	1.1 mm	5.0 mm ± 5%	99.9 Ω/KM max
24AWG	40/0.08	4P	1.1 mm	7.3 mm ± 5%	99.9 Ω/KM max
24AWG	40/0.08	5P	1.1 mm	7.5 mm ± 5%	99.9 Ω/KM max
24AWG	40/0.08	#24x3P+#20x1P	1.1 mm	7.5 mm ± 5%	99.9 Ω/KM max
24AWG	40/0.08	#24x4P+#20x1P	1.1 mm	7.5 mm ± 5%	99.9 Ω/KM max

MODEL UL2517	導體結構 NO.X MM	芯線數 NO.	芯線外徑 INNER DIA	完成外徑 OVERALL DIA	導體電阻 CON RESISTANCE
22AWG	60/0.08	4C	1.4 mm	6.1 mm ± 5%	66.6 Ω/KM max
20AWG	100/0.08	4C	1.8 mm	7.0 mm ± 5%	40.35 Ω/KM max

MODEL

UL2517

導體結構

NO.X MM

芯線數

NO.

芯線外徑

INNER DIA

完成外徑

OVERALL DIA

導體電阻

CON RESISTANCE

22AWG

60/0.08

1.4 mm

6.1 mm ± 5%

66.6 Ω/KM max

20AWG

100/0.08

1.8 mm

7.0 mm ± 5%

40.35 Ω/KM max
