6.4 UL20276 Low voltage Computer Cable / HDMI

Suitable for HDMI application. Double shielding structure .Have a perfect transmission and high speed trait.

分享到

產品說明 PRODUCT DESCRIPTION

兩芯以上或對型絞合 Singles or twisted pairs together.

*聚氯乙烯絕緣或聚乙烯絕緣 PE or PVC insulation

*環保聚氯乙烯被覆 Lead Free PVC Jacket

*額定溫度80°C Rated temperature 80°C

*額定電壓30伏特 Rated voltage:30V

*符合UL&CSA燃燒測試 Passed VW-1&FT-1 vertical flame test

MODEL AWG	導體結構 NO.X MM	芯線數 NO.	絕緣厚度 INS THK	披覆厚度 JACKET THK	完成外徑 OVERALL DIA
28AWG	7/0.127	18P	0.12 mm	1.0 mm	7.6 mm ± 5%
28AWG	7/0.127	25P	0.12 mm	1.0 mm	9.2 mm ± 5%
30AWG	7/0.10	19P	0.20 mm	1.0 mm	8.5 mm ± 5%
30AWG	7/0.10	25P	0.20 mm	1.0 mm	9.4 mm ± 5%
30AWG	7/0.10	40P	0.20 mm	1.0 mm	10.8 mm ± 5%

HDMI TYPE

HDMI 1.4 Version	【(30AWGx5P A+E)+30AWGx4C】 A+E+B Jacket 黑色	OD:6.5mm±0.3mm	Resolution HD 1080P
HDMI 1.4 Version	【(28AWGx5P A+E)+28AWGx4C】 A+E+B Jacket 黑色	OD:6.5mm±0.3mm	Resolution HD 1080P
HDMI 2.0 Version	【(26AWGx5P A+E)+26AWGx4C】 A+E+B Jacket 黑色	OD:8.5mm±0.3mm	Resolution HD 4K
HDMI 2.0 Version	【(24AWGx5P A+E)+24AWGx4C】 A+E+B Jacket 黑色	OD:9.5mm±0.3mm	Resolution HD 4K

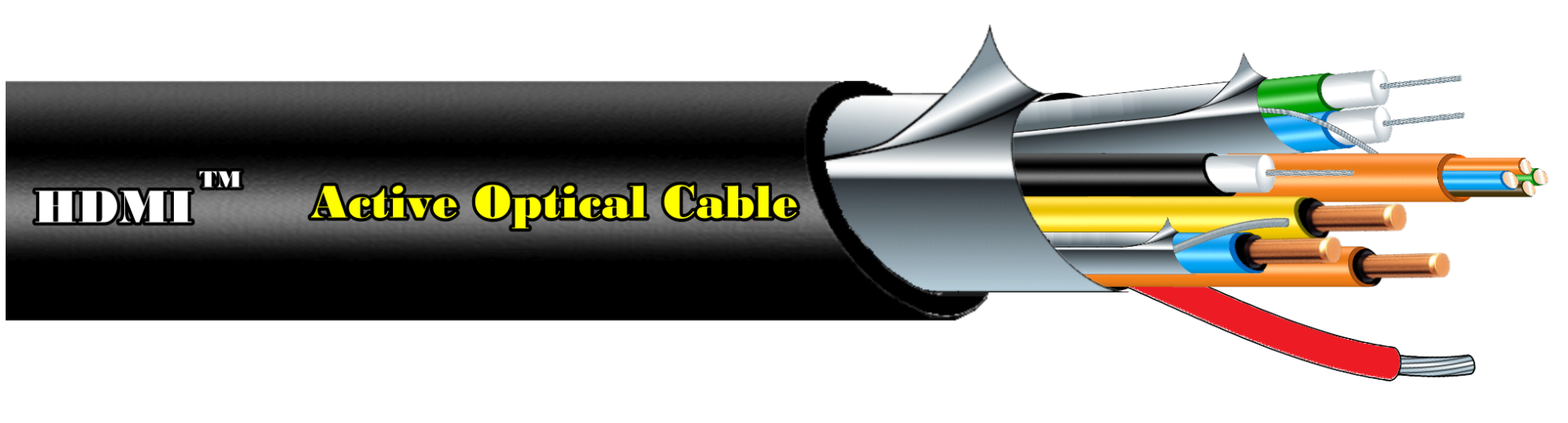

HDMI AOC 8K	Optical Fiber OM34C+28AWGP+26AWG*1P 黑色	OD:5.5 mm±0.3mm	Resolution FULL HD 8K
