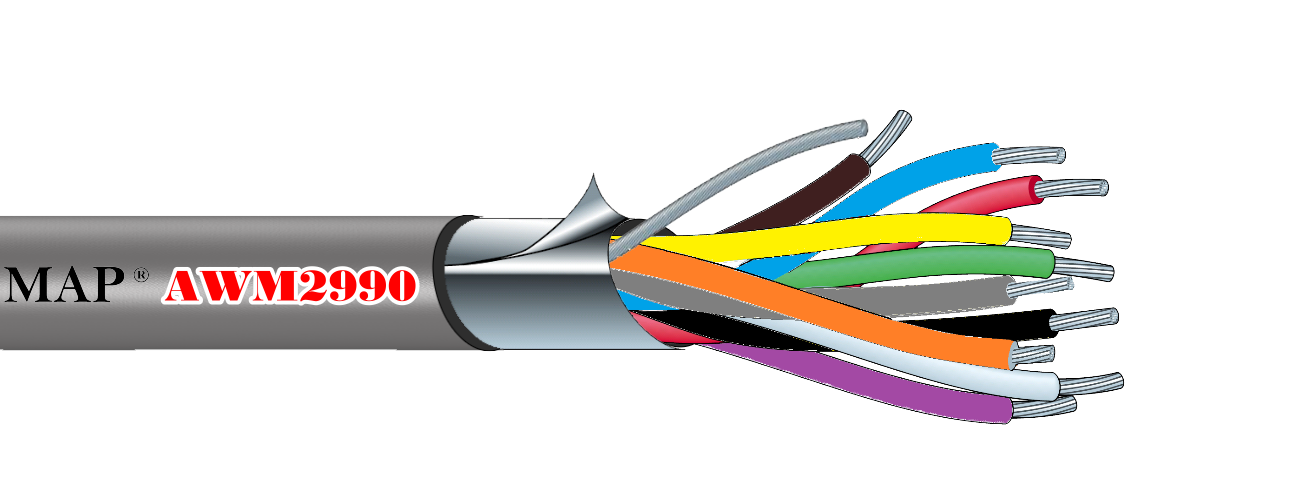

6.3 UL2990 Low voltage Computer Cable

UL2990 is pairs of cable group. Adopting double shielding,it has excellent transmission.

分享到

PRODUCT DESCRIPTION

*Bare copper or Tinned copper conductor

* PP or PE insulation

* Cross cable under Al and braid shield

* Tinned stranded copper drain wire

*Data transmission cable,PVC jacket

*80°C Rated temperature80 °C

*0V Rated voltage:30V

*Appliance Wiring Material UL 758.

Low Voltage signal cable.UL2990 consists of 28AWG cable(Pairs) . Adopting double shielding, it has excellent transmission.

STYLE	AWG	PAIRS	SHIELD MATERIAL	INSULATION THICKNESS	Nominal Capacitance
UL2990	28	5P	AL Foil 100%	0.12 mm	A: 23 pF/m	B: 30 pF/m
UL2990	28	10P	AL Foil 100%	0.12 mm	A: 23 pF/m	B: 30 pF/m
UL2990	28	14P	AL Foil 100%	0.12 mm	A: 23 pF/m	B: 30 pF/m
UL2990	28	19P	AL Foil 100%	0.12 mm	A: 23 pF/m	B: 30 pF/m
UL2990	28	25P	AL Foil 100%	0.12 mm	A: 23 pF/m	B: 30 pF/m
UL2990	28	34P	AL Foil 100%	0.12 mm	A: 23 pF/m	B: 30 pF/m
UL2990	28	50P	AL Foil 100%	0.12 mm	A: 23 pF/m	B: 30 pF/m
UL2990	28	25P	AL Foil 100%	0.24 mm	A: 12 pF/m	B: 25 pF/m
