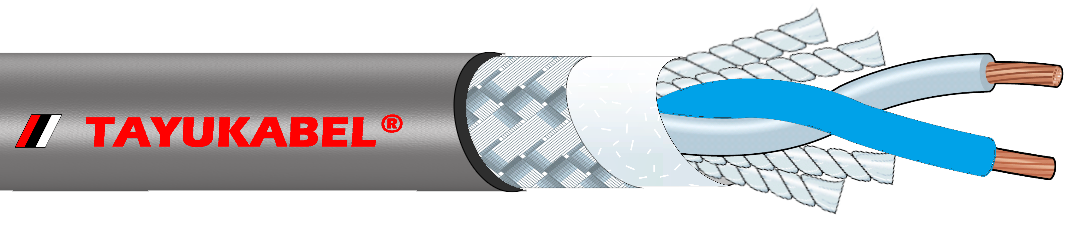

4.1 MAP® Balanced Microphone cable 【TY-TS22】

Balanced audio is a method of interconnecting audio equipment using balanced lines. This type of connection is very important in sound recording and production because it allows the use of long cables while reducing susceptibility to external noise caused by electromagnetic interference.

Japan Design Professional Microphone Cable

日本マイクケーブル 麥克風訊號平衡線

Model Name : 型號  TY-TS22

1.Conductor: OFC  60/0.08mm

2.Insulation Material : Cross-linked PE (XLPE)

3.Rated Temperature: 125℃

4.Twist pitch : 20mm.

5.Braid coverage of 95%.

6.Overall diameter: 6.0 mm.
